How to improve the performance of design patterns when they are involved in intensive algorithms?
Implementation of algorithms for scientific object-oriented numerical computing.
Let us consider a very simple algorithm: the addition of a constant
to each element of an aggregate. We aim at having a single
implementation of the algorithm, which means that this procedure
should accept various aggregate types and data types (the types of
the aggregate elements). A general implementation is possible thanks
to the ITERATOR pattern [5],
parameterized by the data type:
template< typename T >
void add( Aggregate<T>& input, T value )
{
Iterator<T>& iter = input.CreateIterator();
for ( iter.First(); ! iter.IsDone(); iter.Next() )
iter.CurrentElem() += value;
}
A solution for avoiding operation polymorphism, which is a sort of ``run-time genericity'', is to heavily rely on parametric polymorphism, i.e. (compile-time) genericity. In particular, abstractions are handled by parameters and/or deduced from parameters. In order to transform the structure of a usual design pattern into its generic version, we rely on several rules.
General rules:
Rules for procedures which use generic patterns:
Since the type of the procedure
argument input is abstract in the classic object-oriented
version of the example (given in the ``problem'' section), this type
is now a procedure parameter, say A. The only algorithmic
tool is an iterator and its type can be deduced from A
thanks to the alias iterator_type. The type of the procedure
argument value, which is the type of the aggregate
elements, can be deduced from A thanks to the alias
data_type. The resulting code of the generic procedure is
very close to the previous version (the keyword typename
before type deductions is required by
the language C++ to fix ambiguities [13]):
template< typename A >
void add( const A& input, typename A::data_type value )
{
typename A::iterator_type iter = input.CreateIterator();
for ( iter.First(); ! iter.IsDone(); iter.Next() )
iter.CurrentElem() += value;
}
When the procedure add is instantiated at compile-time for a
given type, no class within the procedure is abstract. For instance, in
the code below, the procedure add is instantiated with A
set to buffer<int>:
int main()
{
buffer<int> buf;
//...
add( buf, 7 );
}
and the type aliases defined in the class buffer:
template< typename T >
class buffer
{
public:
typedef T data_type;
typedef buffer_iterator<T> iterator_type;
//...
};
allows the compiler to know that the type of the argument value is int and to define the iterator iter with the proper type.
Since all the types used in the procedure are known at compile-time, any method call does not require dynamic binding. Moreover, each call can be inlined by the compiler. The resulting executable has about the same performance as dedicated code.
Finally, the procedure remains an ``abstract-like'' representation of the algorithm (but without abstract classes) and the ITERATOR pattern has been transformed to become efficient.
Building classes and procedures with an intensive use of both genericity and type deduction is a quite recent paradigm called ``generic programming'' [8]. This paradigm addresses two issues:
The resulting context is then the implementation of algorithms for scientific object-oriented numerical computing within the generic programming paradigm. So, usual design patterns should have a different structure than their known one, and a lot of design patterns from Gamma et al. [5] can be translated into this paradigm.
Please note that generic programming should not be confused with the notion of genericity: generic programming is an intensive use of genericity for software architecture purposes, whereas the common use of genericity in oriented-object programming is dedicated for utility tools (procedures that behave like macros and container classes).
Several generic versions of usual design patterns already appear in generic libraries.
As we are presenting a pattern of design re-engineering from the ``classical'' object-oriented paradigm towards the generic programming paradigm (put differently, a pattern of design pattern transformation), this kind of pattern is related to refactoring patterns [4].
In another sense, related patterns are the initial and resulting patterns themselves.
We now give the description of three generic versions of design patterns, originally from Gamma et al. [5]: the GENERIC ITERATOR, the GENERIC TEMPLATE METHOD and the GENERIC DECORATOR. The last two patterns are, as far as we know, original.
The implementations of the designs given in this paper and of some
other GOF patterns, translated into the generic programming
paradigm, are available at:
http://www.lrde.epita.fr/download/.
Name
GENERIC ITERATOR
Intent
Provide an efficient way to access the elements of an aggregate without exposing its underlying representation.
Motivation
In scientific computing, data are often aggregates and algorithms usually accept various aggregate types as input and browse the aggregate elements; the notion of iterator is thus a very common tool. A major requirement is that iterations are expected to be efficient (this is an extra requirement compared to the original pattern).
Structure
 |

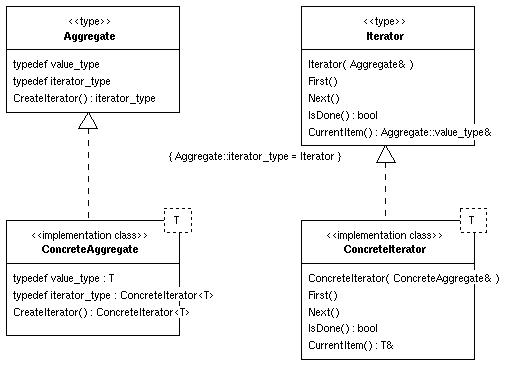

In this diagram, we use a non-standard extension of UML [11] to represent type aliases in classes.
Participants
In generic libraries, a concept [1] is the description of a set of requirements on a type that parameterizes an algorithm implementation (the notion of concept replaces the classical object-oriented notion of abstract class); a type which satisfies these requirements is a model of this concept. For this pattern, two concepts are defined: aggregate and iterator, and two concrete classes, models of these concepts.
Consequences
This design is efficient and allows to implement in an abstract way algorithms which iterate over the elements of an aggregate.
Implementation
An implementation is given in the ``example resolved'' section.
Known Uses
Most generic libraries use the GENERIC ITERATOR pattern (they can be found on the Internet from the page [10]). Aggregates are, for instance, graphs with various topologies, or matrices with various sparse and dense formats.
Name
GENERIC TEMPLATE METHOD
Intent
Define the canvas of an efficient algorithm in a superior class, deferring some steps to subclasses.
Motivation
We have said that inheritance is used in generic programming to factor methods. Here, we want a superior class to define an operation some parts of which (primitive operations) are defined only in inferior classes; in addition, we want method calls to be solved at compile-time. It concerns calls of the primitive operations as well as calls of the template method itself.

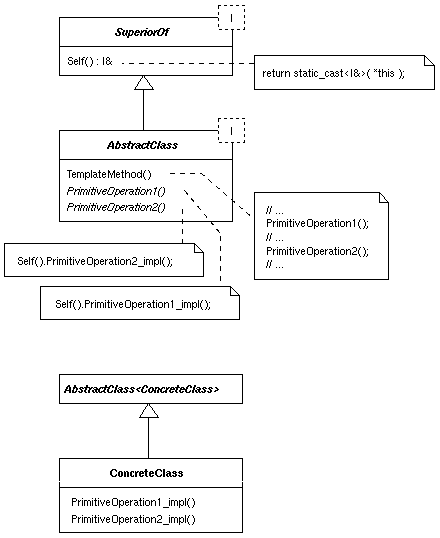

Structure
 |
Participants
In the object-oriented paradigm, the resolution of a polymorphic operation call on a target object consists in finding a method that implements the operation, while searching bottom-up in the class hierarchy from the object dynamic type. In generic programming, let us consider a leaf class; if its superior classes are parameterized by the type of this class, they always know the dynamic type of the object.
The parametric class AbstractClass defines two operations: PrimitiveOperation1() and PrimitiveOperation2(). Calling one of these operations leads to transtyping the target object to its dynamic type, thanks to the method Self(), inherited from the parametric class SuperiorOf. The methods that are executed are the implementations of these operations, respectively PrimitiveOperation1_impl() and PrimitiveOperation2_impl(). These implementations are searched for starting from the dynamic object type.
When the programmer later defines the class ConcreteClass with the primitive operation implementations, the method TemplateMethod() is inherited and a call of this method leads to the execution of the proper implementations.
Consequences
In generic programming, operation polymorphism can be simulated by ``parametric polymorphism through inheritance'' and then be solved statically. The cost of dynamic binding is avoided. Moreover, the compiler is able to inline all the pieces of code, including the template method itself. Hence, this design does not penalize efficiency; a template method can be called within an algorithm implementation body.
Implementation
SuperiorOf and AbstractClass can behave like abstract classes; to this end, their constructors are protected. The methods PrimitiveOperation1() and PrimitiveOperation2() do not contain an operation implementation but a call of an implementation; they can be considered as abstract methods. Please note that they can also be individually called by the client (the fact that these methods are polymorphic-like is hidden because the call Self is encapsulated).
Known Uses
This pattern relies on an idiom (the Curiously Recurring Template) given in [3] and based on [2]. In this idiom, an binary operator, for instance +, is defined in a superior class from the corresponding unary operator, here +=, defined in an inferior class.
Name
GENERIC DECORATOR
Intent
Efficiently define additional responsibilities to an object or replace functionalities of an object, by the means of subclassing.

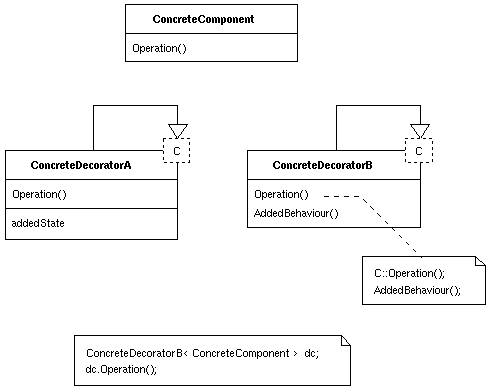

Structure
 |
In this structure, we used a special idiom: having a parametric class that derives from one of its parameters. As far as we know, this is a contribution.
Participants
A class ConcreteComponent which can be decorated, offers an operation Operation(). Two parametric decorators, ConcreteDecoratorA and ConcreteDecoratorB, whose parameter is the decorated type, override this operation. It is a substitution since the decorators are inheriting from their parameter.
Consequences
This pattern has two advantages over Gamma's one. First, any method that is not modified by the decorator is automatically inherited. Not only does this free the decorator from having to define these operations, but in addition, any specific method of a decorated object is in its decorator. Second, decoration can be applied to a set of classes that are not related via inheritance. Therefore, a decorator becomes truly generic and efficient.
Conversely, in the generic version, we lose the capability of dynamically adding a decoration to an object.
Known Uses
As we have said, the idiom on which the GENERIC DECORATOR
relies is original, so we do not know any use of this generic
version. However, decorating an iterator of STL is truly useful when
a container holds structured data, and when one wants to perform
operations only on a single field of these data. In order to access this
field, the decorator redefines the data access operator
operator*() of the
iterator.
typedef std::list< RGB<int> > A;
A input;
// ...
FieldAccess< A::iterator, Get_red > i;
for ( i = input.begin(); i != input.end(); ++i )
{
*i = 0;
}
{0,0,0}.
