Most people involved in mathematical morphology are mathematicians or image processing practitioners rather than computer scientists. Therefore, they should find it easy to use program libraries in order to avoid dealing with implementation problems and rather focus only on the methodological aspects of their work. Köthe [7] notes that the lack of algorithmic comparison in the literature is due to the difficulty of implementing computer vision algorithms. Furthermore, Mallat [10] insists on the notion of reproducible computational science; that is to say, an author of article should make source code available. Along these lines, Pitas has recently published a book [12] fully illustrated with source code.
Quite a lot of image processing libraries are available on the Internet; however, they are usually restricted to very few image structures and data types, whereas mathematical morphology applies on a wide range of data: signals, 2D and 3D images, graphs, etc., containing integers with different precisions, floats, binaries, and so on. It is then very difficult for practitioners to find a library with morphological operators that meet their requirements.
When an image processing algorithm --for instance an erosion-- is translated into a single routine in a given computer language, one says that this routine is generic if it accepts different input types. D'Ornellas and van den Boomgaard [4,3] mention that generic algorithms for morphological image operators could be developed in C++ using the generic programming paradigm.
The aim of this paper is twofold: it presents a new library which provides mathematical morphology operators, and it shows how one can easily translate a mathematic formula into a C++ program in the context of our library.
This paper is organized as follows. In section 2, we present different paradigms to program image processing operators; we discuss their advantages and drawbacks with regard to their genericity level and their safety for the user. Then, in section 3, we study the particular cases of several morphological operators. Last, we conclude in section 4 and we give an evaluation of their performance.
Most of image libraries are built on a C-style programming paradigm, and two families can be identified.
The first family considers that a general type, usually float,
is enough to store data1. A 2D image structure is
then defined as depicted below (left column). A major drawback of
this approach is that there are no semantical distinctions between
images with respect to their data type: procedures are therefore
unable to check constraints about input images. For instance, the
procedure foo (below, right column) expects that both input
images have the same data type but cannot check it. It is then very
easy for a programmer to call routines incorrectly.
struct image2d
{
unsigned nrows, ncols;
float** data;
};
void foo(image2d* ima1, image2d* ima2)
{
/* ... */
}
Two other important drawbacks are that non-scalar data cannot be handled by this image structure and that images consume memory unnecessarily.
The second family of library programming style, described by Dobie and
Lewis [2], addresses these problems by enforcing type
control. To this end, the 2D image structure is modified, see the
left column below: a new field, type, allows the programmer to
insert assertions to check at run-time the proper nature of the input
images (right column below).
typedef enum { INTU8, FLOAT } data_t;
struct image2d
{
unsigned nrows, ncols;
data_t type;
void** data;
};
void foo(image2d* ima1, image2d* ima2)
{
assert(ima1->type == ima2->type);
switch(ima1->type) {
case INTU8:
/* call sub-routine for INTU8 */
foo_INTU8(ima1, ima2); break;
/* ... */
}
}
Unfortunately, if safety is enforced for the library user, the library
programmer has to write as many sub-routines as there are data types.
For instance, the sub-routine foo_INTU8 contains the code
dedicated to unsigned 8 bit integers. Since writing many similar
routines per algorithm is long and tedious, libraries usually handle
only very few data types.
We have shown that genericity wrt data types can be handled either by
the use of a general type (float) or in a tedious fashion by
code replication (the different cases of switch). However,
image structures are still not generic, since we can only handle 2D
images. Some C libraries use macros (keyword #define) to
emulate C++ templates. However, macros cannot handle all features that
we enjoy with templates (e.g. stronger typing, recursivity,
meta-programming).
An interesting feature of the C++ language [13] is
genericity using the template keyword. In the left
column sample code below, image2d is a meta-structure
parameterized by an unknown data type T and the procedure
foo is similarly parameterized. Its input must share the same
data type as made explicit by the procedure signature: this constraint
is now checked at compile-time.
template<class T>
struct image2d
{
unsigned nrows, ncols;
T** data;
};
template<class T>
void foo(image2d<T>& ima1,
image2d<T>& ima2)
{
//...
}
int main()
{
image2d<float> ima1, ima2;
//...
foo(ima1, ima2); // first call
image2d<int> ima3, ima4;
//...
foo(ima3, ima4); // second call
}
In the right column above, the client instantiates different kinds of
image (ima1 contains floats whereas ima3 contains
integers) and calls foo twice. At each call, the compiler
automatically deduces the type T from the input types and
creates a specialized version of the meta-procedure foo. In
our example, T is set to float at the first call and a
version of foo dedicated to process 2D floats images is
generated. That means that the compiler creates specific
sub-routines, and therefore saves the programmer from performing this
tedious task (see section 2.1).
Now we turn to full genericity as we want a procedure to accept different image types. The key idea is given by the style of the Standard Template Library (STL for short) now part of the C++ Standard Library [13]: procedures should be parameterized by their input types. This paradigm is called generic programming by the object-oriented scientific computing community [11].
For instance in order to browse the contents of images with different
structures, obviously one cannot keep two loops when input is 2D or
three when it is 3D. These image structure implementation details
must be hidden. The solution that early appears in imaging
software [9] is the use of iterator objects.
Consider the code below. A new procedure, bar, sets every
pixel to 0. It is now parameterized by InputIter which
represents an iterator type. The object p iterates from the
first point of the targeted image to the last, these iteration
boundaries being given by the methods begin() and end()
of the image class. When bar is called, the particular
procedure instantiated by the compiler uses an iterator i of
type image2d_iterator<float>; the single loop is thus able
browse image with different structures.
template<class T>
struct image2d
{
typedef image2d_iterator<T> iterator;
unsigned nrows, ncols;
T** data;
iterator begin();
iterator end();
//...
};
template<class InputIter>
void bar(InputIter _first, InputIter _last)
{
for (InputIter i = _first; i != _last; ++i)
*i = 0;
}
int main()
{
image2d<float> ima;
//...
foo(ima.begin(), ima.end());
}
Finally, the procedure bar can accept various kind of input.
It is fully generic, type-safe and, moreover, as fast as dedicated C.
Indeed, the use of parameterization (templates) along with type
deductions (typedefs) is handled by the compiler, that is, statically.
In a classical object-oriented way of programming, lot of work is
performed at run-time (e.g, method dispatch through a hierarchy) and
the resulting programs are not as efficient as the one presented in
this section. As far as we know, the only other image processing
library based on this programming paradigm is VIGRA by
Köthe [8].
Please note that the contents of sections 2.1 to 2.3 is discussed in more detail in [5], [4], [3], [6] and [8].
We find the previous proposal unsatisfactory: programs should be closer to algorithm descriptions in mathematical language rather than in a computer scientist language. Our proposal is not to design a new language dedicated to image processing such as in [1] but to provide tools that make easier programming for practitioners: we want something like:
template<class _I>
void bar(image<_I>& _ima)
{
Exact_ref(I, ima);
Iter(I) p(ima);
for_all(p) ima[p] = 0;
}
int main()
{
image2D<float> ima;
//...
bar(ima);
}
And that's indeed what we have in our library.
Please note that, for some mathematical morphology algorithms, there are few approaches to design them (parallel, in-place, based on priority queue and so on). Although we cannot provide a single version for all these flavors, we are still able to preserve the other levels of genericity.
In this section, we study several morphological operators and we show that mathematical formulas and algorithms can easily be written using our tools2. In particular, the watershed operator is described as suggested by d'Ornellas and van den Boomgaard [4].
Table 1 presents how four morphological operators are translated in C++ code.

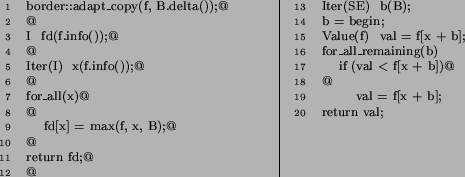

In our library, the body of the dilation procedure ( left
column below) performs the following operations. Line 2 first defines
the output image, fd, whose type is the procedure parameter
I. To this aim, fd needs some structural information
from the input image f (for instance, its size). At line 3, an
iterator x is declared whose type is deduced from I.
Then, the iteration is performed. To remain close to the mathematical
formula, a particular function, max, is specialized according
to the nature (type) of the structuring element. That is, whether
B is flat or not, calling max does not run the same
code.
![\begin{multicols}{2}
\begin{lstlisting}[basicstyle=\scriptsize , indent=16pt, la...
...val < f[x + b])@
@
val = f[x + b];
return val;
\end{lstlisting} \end{multicols}](img6.png)
|
The body of procedure max when B is a flat structuring
element is presented in the right column above. Note that in order to
keep this procedure generic, all implementation details are hidden.
An important feature of our library is that we do not have to care too
much about accessing data out of image support. For instance, in the
case of 2D images, x+b (e.g., line 11) may fall outside the
image support if x is near the image boundary. In order to
save the programmer from writing extra code to test if x+b is
valid, some image type, such as 2D image, have an outside border and
we can assign values to these particular points. In the case of
dilation, we call border::adapt_copy (line 1) which first
adapts the border size of the image to that of the structuring element
and then copies values of the image inner boundary to the
border3. Finally, dilating
induces no side effect. Image processing routines relying on masks,
windows, neighborhoods or structuring elements, are simpler to
implement.
 = \displaystyle\max_{b \in B} f(x+b)$](img1.png){kind=small}
![$\phi_B(f)=\varepsilon_{\check{B}}[\delta_{B}(f)]$](img3.png){kind=small}
erosion(dilation(f, B), -B)
For user convenience, we have implemented a transparent memory management: when a data structure is no longer referenced, it is automatically destroyed. Combining operators is thus made as simple as possible.
unsigned char i = 255, j = 1, k = (i + j) / 2;
k set to 0. In the case of non-flat
structuring elements and in the case of morphological operators
involving arithmetics, e.g., the top-hat contrast operators, the
programmer should not deal with from these problems. To this end, we
have defined our own data types and the corresponding safe
arithmetics. For instance, in the line above, one should use
int_u8 instead of unsigned char and the compiler raises
en error at at compile-time because the type of expression
(i + j) / 2 is now int_u9 and because the assignment
from this type towards the ``smaller'' type int_u8 is
forbidden.
We also have equipped our library with conversion routines that can be used either as stand-alone functions or as first argument of other routines. In the sample code below, the user does not need to know the data type of the image returned by the contrast operator; she can guarantee that, at the very end, every pixel value falls between 0 and 255. So, she benefits simultaneously from safe arithmetics and convenient data type manipulations.
Last, the notion of scoping, whose correctness is verified by
the compiler, ensures the programmer that she uses as little memory as
possible; at the end of the main scope, only lena lies
in memory.
Mathematical morphology operators, such as the watershed, are often
more complicated than those already discussed.
In [4], d'Ornellas and van den Boomgaard argue
that a generic implementation of the watershed is possible
based on a wave-front propagation; they give the algorithm canvas that
we recall in the left column below. Our library provides a
generic implementation of this algorithm, that is, a function
which works on various structures (
-D images, graphs, etc.)
containing data of various types4. The corresponding code excerpts from our library are given
in the right column below.
Note that we also succeeded in providing tools making ``sophisticated'' morphological algorithms implementation easy.
In this article, we have shown that computer programs can achieve both genericity and user-friendliness. Based on the conclusions of d'Ornellas and van den Boomgaard [4], we have proposed solutions --some of them being described here-- and we have built an appropriate framework of object-oriented tools: OLENA. OLENA is a library dedicated to image processing practitioners, and in particular, to mathematical morphology users. The sources of OLENA are freely available on the Internet at the address:
http://www.lrde.epita.fr/olena
Last, getting all the benefits described in this article has not compromised efficiency. Table 2 gives processing time for some morphological operators. These algorithms were tested on the classical gray-level 256 * 256 image LENA with a 1 Ghz personal computer running GNU/LINUX; the code was compiled using the GNU C++ compiler with all optimizations enabled. The column ``regular'' refers to operators being implemented in a classical way; equivalent ``fast'' versions of morphological operators, based on [14], are also available in OLENA. We are aware of the optimal 11* 11 dilation which uses a decomposition of two dilations by straight lines. The algorithm is O(1) with line dilation approaches such as van Herck's [15]. But we do not use it because this is only a text-book study to evaluate and compare execution times. Finally, table 3 presents major functionalities in OLENA.
| Algorithms | Structural Elt. | Regular | Fast |
| Dilation | 3 *3 Square | 0,04 | 0.05 |
| Dilation | 11 * 11 Square | 0,46 | 0,12 |
| Dilation | Disk of radius 6 | 0,44 | 0,13 |
| Closing | Disk of radius 6 | 0,85 | 0,31 |
| Top-Hat Contrast Op. | Disk of radius 6 | 1,74 | 0,62 |
| Watershed | 4-Connectivity | 0,17 | -- |
| Dilation / Erosion |
| Closing / Opening |
| White Top Hat / Black Top Hat / Top Hat Contrast Operator |
| Hit-or-Miss |
| Hit-or-Miss Opening Foreground / Background |
| Hit-or-Miss Closing Foreground / Background |
| Beucher / Internal / External Gradient |
| Geodesic Dilation / Erosion |
| Geodesic Reconstruction by Dilation / Erosion (simple, sequential, hybrid) |
| Minima Imposition |
| Regional Minima |
| Watershed |
| Minima / Maxima Killer |
