Public Types | Public Member Functions | Protected Attributes | Private Types | Private Member Functions | Private Attributes

mln::win::multiple_size_qiter< n, W, F > Class Template Reference

#include <multiple_size.hh>

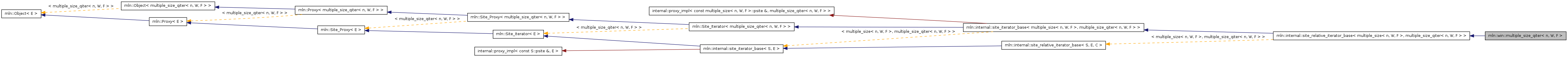

Inheritance diagram for mln::win::multiple_size_qiter< n, W, F >:
Inheritance graph

List of all members.

Public Types

typedef Site_Proxy< void > category
typedef multiple_size_qiter< n,
W, F >
exact_t
typedef multiple_size< n, W, F >
::site
site
 The associated site type (as a Site_Proxy).
typedef multiple_size< n, W, F > target
 The associated target type.

Public Member Functions

const typename multiple_size
< n, W, F >::psite &
center () const
 The psite around which this iterator moves.
void center_at (const P &c)
void change_target (const multiple_size< n, W, F > &s)
 Change the site set targeted by this iterator.
W::psite compute_p_ () const
 Compute the current psite.
void do_next_ ()
 Go to the next point.
void do_start_ ()
 Start an iteration.
template<typename P >
void init_ (const multiple_size< n, W, F > &w, const P &c)
void invalidate ()
void invalidate_ ()
 Invalidate the iterator.
bool is_valid () const
bool is_valid_ () const
 Test the iterator validity.
template<typename P >
 multiple_size_qiter (const multiple_size< n, W, F > &w, const P &c)
 multiple_size_qiter ()
void next ()
 Go to the next element.
void next_ ()
 Go to the next point.
const multiple_size< n, W, F >
::psite &
p_hook_ () const
 Hook to the current location.
const multiple_size< n, W, F > & site_set () const
 Give the site set (neighborhood or window) that this iterator browses.
void start ()
void start_ ()
 Start an iteration.
const multiple_size< n, W, F >
::psite &
subj_ ()
 This overriding is very useful: it adds a test to prevent getting an invalid iterator when its center has moved.
const multiple_size< n, W, F > *& target_ ()
 Give the target address. It might be 0.
const multiple_size< n, W, F >
::site
to_site () const
 Return the site it points to (as a Site_Proxy).
multiple_size_qiter< n, W, F > & update ()
 Warning: this method is an advanced tool provided for very special occasions; if you are a regular user, you should never use it! Calling this method forces this relative iterator to synchronize with its center when it has just moved and when the relative iterator still makes sense.

Protected Attributes

const typename multiple_size
< n, W, F >::psite *
c_
 A pointer to the center psite around which this iterator moves.
const multiple_size< n, W, F > * s_
 The target.

Private Types

typedef multiple_size_qiter< n,
W, F >
self_
typedef
internal::site_relative_iterator_base
< multiple_size< n, W, F >
, self_
super_

Private Member Functions

int size_ () const

Private Attributes

int i_

Detailed Description

template<unsigned n, typename W, typename F>
class mln::win::multiple_size_qiter< n, W, F >

Definition at line 136 of file multiple_size.hh.


Member Typedef Documentation

typedef Site_Proxy<void> mln::Site_Proxy< multiple_size_qiter< n, W, F > >::category [inherited]

Reimplemented from mln::Proxy< multiple_size_qiter< n, W, F > >.

Definition at line 63 of file site_proxy.hh.

typedef multiple_size_qiter< n, W, F > mln::Object< multiple_size_qiter< n, W, F > >::exact_t [inherited]

Definition at line 173 of file object.hh.

template<unsigned n, typename W , typename F >
typedef multiple_size_qiter<n,W,F> mln::win::multiple_size_qiter< n, W, F >::self_ [private]

Definition at line 140 of file multiple_size.hh.

typedef multiple_size< n, W, F > ::site mln::internal::site_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > >::site [inherited]

The associated site type (as a Site_Proxy).

Definition at line 64 of file site_iterator_base.hh.

template<unsigned n, typename W , typename F >
typedef internal::site_relative_iterator_base< multiple_size<n,W,F>, self_ > mln::win::multiple_size_qiter< n, W, F >::super_ [private]
typedef multiple_size< n, W, F > mln::internal::site_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > >::target [inherited]

The associated target type.

Definition at line 61 of file site_iterator_base.hh.


Constructor & Destructor Documentation

template<unsigned n, typename W , typename F >
mln::win::multiple_size_qiter< n, W, F >::multiple_size_qiter (  )  [inline]

Definition at line 311 of file multiple_size.hh.

template<unsigned n, typename W , typename F >
template<typename P >
mln::win::multiple_size_qiter< n, W, F >::multiple_size_qiter ( const multiple_size< n, W, F > &  w,
const P &  c
) [inline]

Member Function Documentation

const typename multiple_size< n, W, F > ::psite & mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::center (  )  const [inherited]

The psite around which this iterator moves.

void mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::center_at ( const P &  c  )  [inherited]
void mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::change_target ( const multiple_size< n, W, F > &  s  )  [inherited]

Change the site set targeted by this iterator.

Referenced by mln::win::multiple_size_qiter< n, W, F >::init_().

template<unsigned n, typename W , typename F >
W::psite mln::win::multiple_size_qiter< n, W, F >::compute_p_ (  )  const [inline]

Compute the current psite.

Definition at line 371 of file multiple_size.hh.

template<unsigned n, typename W , typename F >
void mln::win::multiple_size_qiter< n, W, F >::do_next_ (  )  [inline]

Go to the next point.

Definition at line 363 of file multiple_size.hh.

template<unsigned n, typename W , typename F >
void mln::win::multiple_size_qiter< n, W, F >::do_start_ (  )  [inline]

Start an iteration.

Definition at line 355 of file multiple_size.hh.

template<unsigned n, typename W , typename F >
template<typename P >
void mln::win::multiple_size_qiter< n, W, F >::init_ ( const multiple_size< n, W, F > &  w,
const P &  c
) [inline]
void mln::Site_Iterator< multiple_size_qiter< n, W, F > >::invalidate (  )  [inherited]
template<unsigned n, typename W , typename F >
void mln::win::multiple_size_qiter< n, W, F >::invalidate_ (  )  [inline]

Invalidate the iterator.

Definition at line 347 of file multiple_size.hh.

bool mln::Site_Iterator< multiple_size_qiter< n, W, F > >::is_valid (  )  const [inherited]
template<unsigned n, typename W , typename F >
bool mln::win::multiple_size_qiter< n, W, F >::is_valid_ (  )  const [inline]

Test the iterator validity.

Definition at line 339 of file multiple_size.hh.

References mln::win::multiple_size_qiter< n, W, F >::size_().

void mln::Site_Iterator< multiple_size_qiter< n, W, F > >::next (  )  [inherited]

Go to the next element.

Warning:
This is a final method; iterator classes should not re-defined this method. The actual "next" operation has to be defined through the next_ method.
Precondition:
The iterator is valid.
void mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::next_ (  )  [inherited]

Go to the next point.

const multiple_size< n, W, F > ::psite& mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::p_hook_ (  )  const [inherited]

Hook to the current location.

const multiple_size< n, W, F > & mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::site_set (  )  const [inherited]

Give the site set (neighborhood or window) that this iterator browses.

template<unsigned n, typename W , typename F >
int mln::win::multiple_size_qiter< n, W, F >::size_ (  )  const [inline, private]
void mln::Site_Iterator< multiple_size_qiter< n, W, F > >::start (  )  [inherited]
void mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::start_ (  )  [inherited]

Start an iteration.

const multiple_size< n, W, F > ::psite& mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::subj_ (  )  [inherited]

This overriding is very useful: it adds a test to prevent getting an invalid iterator when its center has moved.

Some sub-classes provide an update() method for the client to say that she really want to read the iterator just after the center has changed.

Reimplemented from mln::internal::site_iterator_base< multiple_size< n, W, F >, multiple_size_qiter< n, W, F > >.

const multiple_size< n, W, F > *& mln::internal::site_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > >::target_ (  )  [inherited]

Give the target address. It might be 0.

const multiple_size< n, W, F > ::site& mln::internal::site_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > >::to_site (  )  const [inherited]

Return the site it points to (as a Site_Proxy).

multiple_size_qiter< n, W, F > & mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::update (  )  [inherited]

Warning: this method is an advanced tool provided for very special occasions; if you are a regular user, you should never use it! Calling this method forces this relative iterator to synchronize with its center when it has just moved and when the relative iterator still makes sense.


Member Data Documentation

const typename multiple_size< n, W, F > ::psite * mln::internal::site_relative_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > , typename multiple_size< n, W, F > ::psite >::c_ [protected, inherited]

A pointer to the center psite around which this iterator moves.

Definition at line 108 of file site_relative_iterator_base.hh.

template<unsigned n, typename W , typename F >
int mln::win::multiple_size_qiter< n, W, F >::i_ [private]

Definition at line 168 of file multiple_size.hh.

const multiple_size< n, W, F > * mln::internal::site_iterator_base< multiple_size< n, W, F > , multiple_size_qiter< n, W, F > >::s_ [protected, inherited]

The target.

Definition at line 90 of file site_iterator_base.hh.

Referenced by mln::win::multiple_size_qiter< n, W, F >::size_().
