mln::topo::adj_lower_higher_face_bkd_iter< D > Class Template Reference

Forward iterator on all the adjacent (n-1)-faces and (n+1)-faces of the n-face of an mln::complex<D>. More...

#include <adj_lower_higher_face_iter.hh>

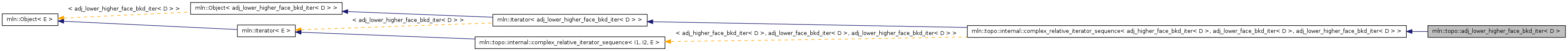

Inheritance diagram for mln::topo::adj_lower_higher_face_bkd_iter< D >:

List of all members.

Public Types
typedef Object< void >	category
typedef adj_higher_face_bkd_iter< D > ::center_type	center_type
	The type of the center face.
typedef adj_lower_higher_face_bkd_iter < D >	exact_t
typedef adj_higher_face_bkd_iter< D > ::face_type	face_type
	The type of the iterated faces.
Public Member Functions
void	next ()
	Go to the next element.
	adj_lower_higher_face_bkd_iter ()
	Construction.
template<typename Fref >
	adj_lower_higher_face_bkd_iter (const Fref &f_ref)
void	center_at (const center_type &c)
	Manipulation.
bool	is_valid () const
	Test if the iterator is valid.
void	invalidate ()
	Invalidate the iterator.
void	start ()
	Start an iteration.
void	next_ ()
	Go to the next point.
	operator typename const_face_type_< adj_higher_face_bkd_iter< D > >::ret () const
	Conversion.
Protected Member Functions
void	update_ ()
	Update the target face.
Protected Attributes
face_type	f_
	The face handle this iterator is pointing to.
Private Types
typedef adj_higher_face_bkd_iter< D >	iter1_
	The first complex relative iterator.
typedef adj_lower_face_bkd_iter< D >	iter2_
	The second complex relative iterator.
typedef adj_lower_higher_face_bkd_iter < D >	self_
typedef internal::complex_relative_iterator_sequence < iter1_, iter2_, self_ >	super_

---

Detailed Description

template<unsigned D>
class mln::topo::adj_lower_higher_face_bkd_iter< D >

Forward iterator on all the adjacent (n-1)-faces and (n+1)-faces of the n-face of an mln::complex<D>.

Template Parameters:

D

The dimension of the complex this iterator belongs to.

Definition at line 102 of file adj_lower_higher_face_iter.hh.

---

Member Typedef Documentation

typedef Object<void> mln::Object< adj_lower_higher_face_bkd_iter< D > >::category [inherited]

Definition at line 174 of file object.hh.

typedef adj_higher_face_bkd_iter< D > ::center_type mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::center_type [inherited]

The type of the center face.

Definition at line 75 of file complex_relative_iterator_sequence.hh.

typedef adj_lower_higher_face_bkd_iter< D > mln::Object< adj_lower_higher_face_bkd_iter< D > >::exact_t [inherited]

Definition at line 173 of file object.hh.

typedef adj_higher_face_bkd_iter< D > ::face_type mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::face_type [inherited]

The type of the iterated faces.

Definition at line 77 of file complex_relative_iterator_sequence.hh.

template<unsigned D>

typedef adj_higher_face_bkd_iter<D> mln::topo::adj_lower_higher_face_bkd_iter< D >::iter1_ [private]

The first complex relative iterator.

Reimplemented from mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D >, adj_lower_face_bkd_iter< D >, adj_lower_higher_face_bkd_iter< D > >.

Definition at line 108 of file adj_lower_higher_face_iter.hh.

template<unsigned D>

typedef adj_lower_face_bkd_iter<D> mln::topo::adj_lower_higher_face_bkd_iter< D >::iter2_ [private]

The second complex relative iterator.

Reimplemented from mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D >, adj_lower_face_bkd_iter< D >, adj_lower_higher_face_bkd_iter< D > >.

Definition at line 109 of file adj_lower_higher_face_iter.hh.

template<unsigned D>

typedef adj_lower_higher_face_bkd_iter<D> mln::topo::adj_lower_higher_face_bkd_iter< D >::self_ [private]

Reimplemented from mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D >, adj_lower_face_bkd_iter< D >, adj_lower_higher_face_bkd_iter< D > >.

Definition at line 107 of file adj_lower_higher_face_iter.hh.

template<unsigned D>

typedef internal::complex_relative_iterator_sequence< iter1_, iter2_, self_ > mln::topo::adj_lower_higher_face_bkd_iter< D >::super_ [private]

Definition at line 112 of file adj_lower_higher_face_iter.hh.

---

Constructor & Destructor Documentation

template<unsigned D>

mln::topo::adj_lower_higher_face_bkd_iter< D >::adj_lower_higher_face_bkd_iter

(

)

[inline]

Construction.

Definition at line 152 of file adj_lower_higher_face_iter.hh.

template<unsigned D>

template<typename Fref >

mln::topo::adj_lower_higher_face_bkd_iter< D >::adj_lower_higher_face_bkd_iter

(

const Fref &

f_ref

)

[inline]

Definition at line 159 of file adj_lower_higher_face_iter.hh.

---

Member Function Documentation

void mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::center_at

(

const center_type &

c

)

[inherited]

Manipulation.

Change the center face.

void mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::invalidate

(

)

[inherited]

Invalidate the iterator.

bool mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::is_valid

(

)

const [inherited]

Test if the iterator is valid.

void mln::Iterator< adj_lower_higher_face_bkd_iter< D > >::next

(

)

[inherited]

Go to the next element.

Warning:

This is a final method; iterator classes should not re-defined this method. The actual "next" operation has to be defined through the next_ method.

Precondition:

The iterator is valid.

void mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::next_

(

)

[inherited]

Go to the next point.

mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::operator typename const_face_type_< adj_higher_face_bkd_iter< D > >::ret

(

)

const [inherited]

Conversion.

Return a reference to the corresponding face handle.

void mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::start

(

)

[inherited]

Start an iteration.

void mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::update_

(

)

[protected, inherited]

Update the target face.

---

Member Data Documentation

face_type mln::topo::internal::complex_relative_iterator_sequence< adj_higher_face_bkd_iter< D > , adj_lower_face_bkd_iter< D > , adj_lower_higher_face_bkd_iter< D > >::f_ [protected, inherited]

The face handle this iterator is pointing to.

Definition at line 120 of file complex_relative_iterator_sequence.hh.
