Cuboid defined on the 3-D square grid. More...

#include <cuboid3d.hh>

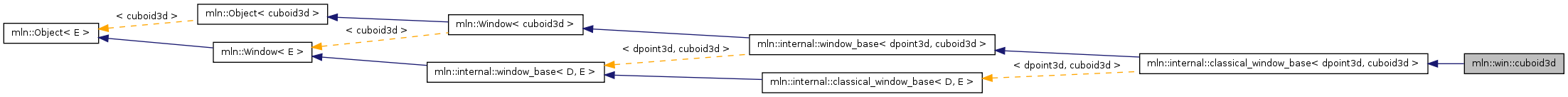

Inheritance diagram for mln::win::cuboid3d:

Public Types
typedef dpsites_fwd_piter < cuboid3d >	bkd_qiter
	Backward site iterator associated type.
typedef Window< void >	category
typedef psite	center_t
	Type of the window center.
typedef dpoint3d	dpsite
	DPsite associated type.
typedef cuboid3d	exact_t
typedef dpsites_fwd_piter < cuboid3d >	fwd_qiter
	Forward site iterator associated type.
typedef dpoint3d::psite	psite
	Psite associated type.
typedef fwd_qiter	qiter
	Site iterator associated type.
typedef window< dpoint3d >	regular
	Regular window associated type.
typedef dpoint3d::site	site
	Site associated type.
Public Member Functions
	cuboid3d (unsigned depth, unsigned height, unsigned width)
	Constructor.
unsigned	delta () const
	Give the maximum coordinate gap between the window center and a window point.
unsigned	delta_ () const
	Give the maximum coordinate gap between the center of the window and a point of the window.
const dpoint3d &	dp (unsigned i) const
	Give the `i-th` delta-point.
bool	has (const dpoint3d &dp) const
	Test if the delta-point `dp` belongs to the window.
bool	is_centered () const
	Test if the window is centered; return true.
bool	is_empty () const
	Test if the window is empty (null size; no delta-point).
bool	is_neighbable_ () const
	Test if this window can be a neighborhood.
bool	is_symmetric () const
	Test if the window is symmetric; return true.
bool	is_valid () const
	return true by default.
void	print (std::ostream &ostr) const
	Print into `ostr` the window definition.
void	print_ (std::ostream &ostr) const
unsigned	size () const
	Give the number of delta-points.
const std::vector< dpoint3d > &	std_vector () const
	Give the vector of delta-points.
void	sym ()
	Apply a central symmetry to the target window; a no-op here.
const std::vector< dpoint3d > &	vect () const
	Give the vector of delta-points.
unsigned	volume () const
	Return the volume of the cuboid.


unsigned	depth () const
	Accessors.
unsigned	height () const
	Return the height of the cuboid.
unsigned	width () const
	Return the width of the cuboid.
Protected Member Functions
void	insert (const dpoint3d &d)
Protected Attributes
unsigned	depth_
	The depth of the cuboid (expressed as a number of slices).
unsigned	height_
	The height of the cuboid (expressed as a number of rows).
unsigned	width_
	The width of the cuboid (expressed as a number of columns).
mln::window< dpoint3d >	win_

Detailed Description

Cuboid defined on the 3-D square grid.

A cuboid3d is a 3-D window with cuboid (also known as rectangular prism or rectangular parallelepiped) shape. It is centered and symmetric.

For instance:

            o o o o o o o
           o o o o o o o
          o o o o o o o
         o o o o o o o
        o o o o o o o

            o o o o o o o
           o o o o o o o
          o o o x o o o
         o o o o o o o
        o o o o o o o

            o o o o o o o
           o o o o o o o
          o o o o o o o
         o o o o o o o
        o o o o o o o

is defined with depth = 3, height = 5 and width = 7.

Reference: http://en.wikipedia.org/wiki/Cuboid

Definition at line 80 of file cuboid3d.hh.

Member Typedef Documentation

typedef dpsites_fwd_piter<cuboid3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::bkd_qiter [inherited]

Backward site iterator associated type.

Definition at line 67 of file classical_window_base.hh.

typedef Window<void> mln::Window< cuboid3d >::category [inherited]

Reimplemented from mln::Object< cuboid3d >.

Definition at line 89 of file concept/window.hh.

typedef psite mln::internal::window_base< dpoint3d , cuboid3d >::center_t [inherited]

Type of the window center.

Definition at line 62 of file window_base.hh.

typedef dpoint3d mln::internal::window_base< dpoint3d , cuboid3d >::dpsite [inherited]

DPsite associated type.

Definition at line 53 of file window_base.hh.

typedef cuboid3d mln::Object< cuboid3d >::exact_t [inherited]

Definition at line 173 of file object.hh.

typedef dpsites_fwd_piter<cuboid3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::fwd_qiter [inherited]

Forward site iterator associated type.

Definition at line 64 of file classical_window_base.hh.

typedef dpoint3d ::psite mln::internal::window_base< dpoint3d , cuboid3d >::psite [inherited]

Psite associated type.

Definition at line 56 of file window_base.hh.

typedef fwd_qiter mln::internal::classical_window_base< dpoint3d , cuboid3d >::qiter [inherited]

Site iterator associated type.

Definition at line 70 of file classical_window_base.hh.

typedef window<dpoint3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::regular [inherited]

Regular window associated type.

Definition at line 60 of file classical_window_base.hh.

typedef dpoint3d ::site mln::internal::window_base< dpoint3d , cuboid3d >::site [inherited]

Site associated type.

Definition at line 59 of file window_base.hh.

Constructor & Destructor Documentation

mln::win::cuboid3d::cuboid3d	(	unsigned	depth,
		unsigned	height,
		unsigned	width
	)			`[inline]`

Constructor.

Parameters:

`[in]`	depth	The depth of the cuboid3d.
`[in]`	height	The height of the cuboid3d.
`[in]`	width	The width of the cuboid3d.

Precondition:: Argument depth, height and width must be odd.

Definition at line 125 of file cuboid3d.hh.

References mln::internal::classical_window_base< dpoint3d, cuboid3d >::insert().

Member Function Documentation

unsigned mln::internal::classical_window_base< dpoint3d , cuboid3d >::delta ( ) const [inherited]

Give the maximum coordinate gap between the window center and a window point.

unsigned mln::win::cuboid3d::delta_ ( ) const [inline]

Give the maximum coordinate gap between the center of the window and a point of the window.

Reimplemented from mln::internal::classical_window_base< dpoint3d, cuboid3d >.

Definition at line 174 of file cuboid3d.hh.

References depth_, height_, and width_.

unsigned mln::win::cuboid3d::depth ( ) const [inline]

Accessors.

Return the depth of the cuboid.

Definition at line 146 of file cuboid3d.hh.

References depth_.

const dpoint3d & mln::internal::classical_window_base< dpoint3d , cuboid3d >::dp ( unsigned i ) const [inherited]

Give the i-th delta-point.

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::has ( const dpoint3d & dp ) const [inherited]

Test if the delta-point dp belongs to the window.

unsigned mln::win::cuboid3d::height ( ) const [inline]

Return the height of the cuboid.

Definition at line 153 of file cuboid3d.hh.

References height_.

void mln::internal::classical_window_base< dpoint3d , cuboid3d >::insert ( const dpoint3d & d ) [protected, inherited]

Referenced by cuboid3d().

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::is_centered ( ) const [inherited]

Test if the window is centered; return true.

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::is_empty ( ) const [inherited]

Test if the window is empty (null size; no delta-point).

bool mln::internal::window_base< dpoint3d , cuboid3d >::is_neighbable_ ( ) const [inherited]

Test if this window can be a neighborhood.

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::is_symmetric ( ) const [inherited]

Test if the window is symmetric; return true.

bool mln::internal::window_base< dpoint3d , cuboid3d >::is_valid ( ) const [inherited]

return true by default.

void mln::internal::classical_window_base< dpoint3d , cuboid3d >::print ( std::ostream & ostr ) const [inherited]

Print into ostr the window definition.

void mln::win::cuboid3d::print_ ( std::ostream & ostr ) const [inline]

Reimplemented from mln::internal::classical_window_base< dpoint3d, cuboid3d >.

Definition at line 194 of file cuboid3d.hh.

References depth_, height_, and width_.

unsigned mln::internal::classical_window_base< dpoint3d , cuboid3d >::size ( ) const [inherited]

Give the number of delta-points.

const std::vector<dpoint3d >& mln::internal::classical_window_base< dpoint3d , cuboid3d >::std_vector ( ) const [inherited]

Give the vector of delta-points.

void mln::internal::classical_window_base< dpoint3d , cuboid3d >::sym ( ) [inherited]

Apply a central symmetry to the target window; a no-op here.

const std::vector<dpoint3d >& mln::internal::classical_window_base< dpoint3d , cuboid3d >::vect ( ) const [inherited]

Give the vector of delta-points.

unsigned mln::win::cuboid3d::volume ( ) const [inline]

Return the volume of the cuboid.

Definition at line 167 of file cuboid3d.hh.

References depth_, height_, and width_.

unsigned mln::win::cuboid3d::width ( ) const [inline]

Return the width of the cuboid.

Definition at line 160 of file cuboid3d.hh.

References width_.

Member Data Documentation

unsigned mln::win::cuboid3d::depth_ [protected]

The depth of the cuboid (expressed as a number of slices).

Definition at line 113 of file cuboid3d.hh.

Referenced by delta_(), depth(), print_(), and volume().

unsigned mln::win::cuboid3d::height_ [protected]

The height of the cuboid (expressed as a number of rows).

Definition at line 115 of file cuboid3d.hh.

Referenced by delta_(), height(), print_(), and volume().

unsigned mln::win::cuboid3d::width_ [protected]

The width of the cuboid (expressed as a number of columns).

Definition at line 117 of file cuboid3d.hh.

Referenced by delta_(), print_(), volume(), and width().

mln::window<dpoint3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::win_ [protected, inherited]

Definition at line 118 of file classical_window_base.hh.
