Base class for implementation of point classes. More...

#include <gpoint.hh>

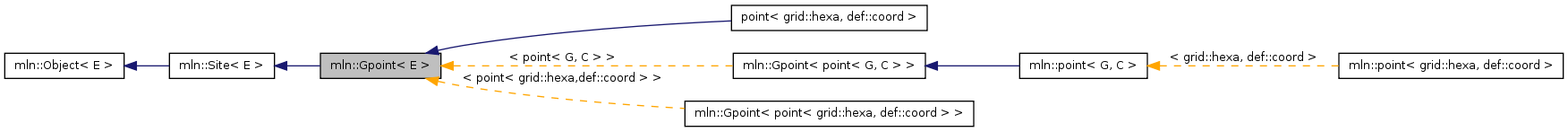

Inheritance diagram for mln::Gpoint< E >:

Public Types
typedef Gpoint< void >	category
typedef E	exact_t
Protected Member Functions
	Gpoint ()
Related Functions
(Note that these are not member functions.)
template<typename P , typename D >
P	operator+ (const Gpoint< P > &p, const Gdpoint< D > &dp)
	Add a delta-point `rhs` to a grid point `lhs`.
template<typename P , typename D >
P &	operator+= (Gpoint< P > &p, const Gdpoint< D > &dp)
	Shift a point `by` a delta-point `dp`.
template<typename L , typename R >
L::delta	operator- (const Gpoint< L > &lhs, const Gpoint< R > &rhs)
	Difference between a couple of grid point `lhs` and `rhs`.
template<typename P , typename D >
P &	operator-= (Gpoint< P > &p, const Gdpoint< D > &dp)
	Shift a point `by` the negate of a delta-point `dp`.
template<typename P , typename D >
P	operator/ (const Gpoint< P > &p, const value::scalar_< D > &dp)
	Divise a point `by` a scalar `s`.
template<typename P >
std::ostream &	operator<< (std::ostream &ostr, const Gpoint< P > &p)
	Print a grid point `p` into the output stream `ostr`.
template<typename L , typename R >
bool	operator== (const Gpoint< L > &lhs, const Gpoint< R > &rhs)
	Equality comparison between a couple of grid point `lhs` and `rhs`.

Detailed Description

template<typename E>
struct mln::Gpoint< E >

Base class for implementation of point classes.

A point is an element of a space.

For instance, mln::point2d is the type of elements defined on the discrete square grid of the 2D plane.

Definition at line 115 of file gpoint.hh.

Member Typedef Documentation

template<typename E>

typedef Gpoint<void> mln::Gpoint< E >::category

Reimplemented from mln::Site< E >.

Definition at line 117 of file gpoint.hh.

template<typename E>

typedef E mln::Object< E >::exact_t [inherited]

Definition at line 173 of file object.hh.

Constructor & Destructor Documentation

template<typename E >

mln::Gpoint< E >::Gpoint ( ) [inline, protected]

Definition at line 299 of file gpoint.hh.

Friends And Related Function Documentation

template<typename P , typename D >

P operator+	(	const Gpoint< P > &	p,
		const Gdpoint< D > &	dp
	)			`[related]`

Add a delta-point rhs to a grid point lhs.

Parameters:

`[in]`	p	A grid point.
`[in]`	dp	A delta-point.

The type of dp has to compatible with the type of p.

Returns:: A point (temporary object).

See also:: mln::Gdpoint

Definition at line 385 of file gpoint.hh.

template<typename P , typename D >

P & operator+=	(	Gpoint< P > &	p,
		const Gdpoint< D > &	dp
	)			`[related]`

Shift a point by a delta-point dp.

Parameters:

`[in,out]`	p	The targeted point.
`[in]`	dp	A delta-point.

Returns:: A reference to the point p once translated by dp.

Precondition:: The type of dp has to be compatible with the type of p.

Definition at line 428 of file gpoint.hh.

template<typename L , typename R >

L::delta operator-	(	const Gpoint< L > &	lhs,
		const Gpoint< R > &	rhs
	)			`[related]`

Difference between a couple of grid point lhs and rhs.

Parameters:

`[in]`	lhs	A first grid point.
`[in]`	rhs	A second grid point.

Warning:: There is no type promotion in Milena so the client has to make sure that both points are defined with the same type of coordinates.

Precondition:: Both lhs and rhs have to be defined on the same topology and with the same type of coordinates; otherwise this test does not compile.

Postcondition:: The result, dp, is such as lhs == rhs + dp.

Returns:: A delta point (temporary object).

See also:: mln::Gdpoint

Definition at line 374 of file gpoint.hh.

template<typename P , typename D >

P & operator-=	(	Gpoint< P > &	p,
		const Gdpoint< D > &	dp
	)			`[related]`

Shift a point by the negate of a delta-point dp.

Parameters:

`[in,out]`	p	The targeted point.
`[in]`	dp	A delta-point.

Returns:: A reference to the point p once translated by - dp.

Precondition:: The type of dp has to be compatible with the type of p.

Definition at line 436 of file gpoint.hh.

template<typename P , typename D >

P operator/	(	const Gpoint< P > &	p,
		const value::scalar_< D > &	dp
	)			`[related]`

Divise a point by a scalar s.

Parameters:

`[in,out]`	p	The targeted point.
`[in]`	dp	A scalar.

Returns:: A reference to the point p once divised by s.

template<typename P >

std::ostream & operator<<	(	std::ostream &	ostr,
		const Gpoint< P > &	p
	)			`[related]`

Print a grid point p into the output stream ostr.

Parameters:

`[in,out]`	ostr	An output stream.
`[in]`	p	A grid point.

Returns:: The modified output stream ostr.

Definition at line 417 of file gpoint.hh.

template<typename L , typename R >

bool operator==	(	const Gpoint< L > &	lhs,
		const Gpoint< R > &	rhs
	)			`[related]`

Equality comparison between a couple of grid point lhs and rhs.

Parameters:

`[in]`	lhs	A first grid point.
`[in]`	rhs	A second grid point.

Precondition:: Both lhs and rhs have to be defined on the same topology; otherwise this test does not compile.

Returns:: True if both grid points have the same coordinates, otherwise false.

Definition at line 365 of file gpoint.hh.
