mln::bkd_pixter1d< I > Class Template Reference

Backward pixel iterator on a 1-D image with border. More...

#include <pixter1d.hh>

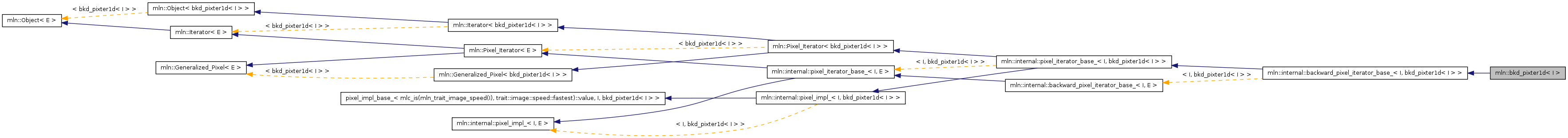

Inheritance diagram for mln::bkd_pixter1d< I >:

List of all members.

Public Types
typedef Object< void >	category
typedef bkd_pixter1d< I >	exact_t
typedef I	image
	Image type.
typedef I::lvalue	lvalue
	Image lvalue type.
typedef I::rvalue	rvalue
	Image rvalue type.
typedef I::value	value
	Image value type.
Public Member Functions
value **	address_ () const
	Address of the current iterator value/pixel.
	bkd_pixter1d (I &image)
	Constructor.
I &	ima () const
	Give the pixel image.
void	next ()
	Go to the next element.
void	next_ ()
	Go to the next pixel.
	operator unsigned () const
rvalue	val () const
	Get the pixel iterator value.
lvalue	val ()
	pixel iterator value.
void	start ()
	ManipulationStart an iteration.
void	invalidate ()
	Invalidate the iterator.
bool	is_valid () const
	Test if the iterator is valid.
Protected Member Functions
void	start_ ()
	Default impl is no-op.
Protected Attributes
I::qlf_value *	boi_
	Beginning of the image.
I::qlf_value *	eoi_
	End of the image (past-the-end).
Private Types
typedef internal::backward_pixel_iterator_base_ < I, bkd_pixter1d< I > >	super_

---

Detailed Description

template<typename I>
class mln::bkd_pixter1d< I >

Backward pixel iterator on a 1-D image with border.

Definition at line 69 of file pixter1d.hh.

---

Member Typedef Documentation

typedef Object<void> mln::Object< bkd_pixter1d< I > >::category [inherited]

Definition at line 174 of file object.hh.

typedef bkd_pixter1d< I > mln::Object< bkd_pixter1d< I > >::exact_t [inherited]

Definition at line 173 of file object.hh.

template<typename I >

typedef I mln::bkd_pixter1d< I >::image

Image type.

Reimplemented from mln::internal::pixel_impl_< I, bkd_pixter1d< I > >.

Definition at line 76 of file pixter1d.hh.

typedef I ::lvalue mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::lvalue [inherited]

Image lvalue type.

Definition at line 135 of file pixel_impl.hh.

typedef I ::rvalue mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::rvalue [inherited]

Image rvalue type.

Definition at line 138 of file pixel_impl.hh.

template<typename I >

typedef internal::backward_pixel_iterator_base_< I, bkd_pixter1d<I> > mln::bkd_pixter1d< I >::super_ [private]

Reimplemented from mln::internal::backward_pixel_iterator_base_< I, bkd_pixter1d< I > >.

Definition at line 72 of file pixter1d.hh.

typedef I ::value mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::value [inherited]

Image value type.

Definition at line 132 of file pixel_impl.hh.

---

Constructor & Destructor Documentation

template<typename I >

mln::bkd_pixter1d< I >::bkd_pixter1d

(

I &


)

[inline]

Constructor.

Parameters:

[in]


The image this pixel iterator is bound to.

Definition at line 117 of file pixter1d.hh.

---

Member Function Documentation

value** mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::address_

(

)

const [inherited]

Address of the current iterator value/pixel.

I& mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::ima

(

)

const [inherited]

Give the pixel image.

void mln::internal::backward_pixel_iterator_base_< I, bkd_pixter1d< I > >::invalidate

(

)

[inherited]

Invalidate the iterator.

bool mln::internal::backward_pixel_iterator_base_< I, bkd_pixter1d< I > >::is_valid

(

)

const [inherited]

Test if the iterator is valid.

void mln::Iterator< bkd_pixter1d< I > >::next

(

)

[inherited]

Go to the next element.

Warning:

This is a final method; iterator classes should not re-defined this method. The actual "next" operation has to be defined through the next_ method.

Precondition:

The iterator is valid.

template<typename I >

void mln::bkd_pixter1d< I >::next_

(

)

[inline]

Go to the next pixel.

Definition at line 126 of file pixter1d.hh.

mln::Generalized_Pixel< bkd_pixter1d< I > >::operator unsigned

(

)

const [inline, inherited]

Definition at line 65 of file generalized_pixel.hh.

void mln::internal::backward_pixel_iterator_base_< I, bkd_pixter1d< I > >::start

(

)

[inherited]

ManipulationStart an iteration.

void mln::internal::pixel_iterator_base_< I, bkd_pixter1d< I > >::start_

(

)

[protected, inherited]

Default impl is no-op.

lvalue mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::val

(

)

[inherited]

pixel iterator value.

rvalue mln::internal::pixel_impl_< I, bkd_pixter1d< I > >::val

(

)

const [inherited]

Get the pixel iterator value.

---

Member Data Documentation

I ::qlf_value* mln::internal::pixel_iterator_base_< I, bkd_pixter1d< I > >::boi_ [protected, inherited]

Beginning of the image.

Definition at line 62 of file pixel_iterator_base.hh.

I ::qlf_value* mln::internal::pixel_iterator_base_< I, bkd_pixter1d< I > >::eoi_ [protected, inherited]

End of the image (past-the-end).

Definition at line 65 of file pixel_iterator_base.hh.
