Public Types | Public Member Functions | Protected Attributes

mln::image1d< T > Struct Template Reference
[Basic types]

Basic 1D image class. More...

#include <image1d.hh>

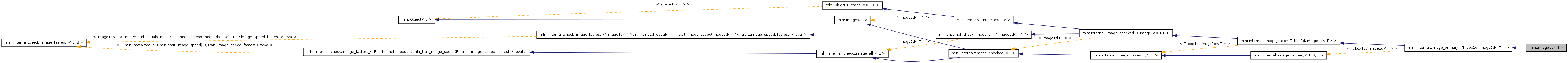

Inheritance diagram for mln::image1d< T >:
Inheritance graph

List of all members.

Public Types

typedef box1d::bkd_piter bkd_piter
 Backward Site_Iterator associated type.
typedef Image< void > category
typedef box1d domain_t
 Site_Set associated type.
typedef image1d< T > exact_t
typedef box1d::fwd_piter fwd_piter
 Forward Site_Iterator associated type.
typedef T & lvalue
 Return type of read-write access.
typedef fwd_piter piter
 Site_Iterator associated type; default definition is fwd_piter.
typedef box1d::psite psite
 Point_Site associated type.
typedef const T & rvalue
 Return type of read-only access.
typedef box1d::site site
 Site associated type.
typedef image1d< tag::value_< T > > skeleton
 Skeleton.
typedef
internal::image_primary< T,
mln::box1d, image1d< T > >
super_
typedef mln::value::set< T > t_eligible_values_set
 Eligible-value-set associated type.
typedef mln::value::set
< typename
mln::value::super_value< T >
::ret
t_values_space
 Value space associated type.
typedef T value
 Value associated type.

Public Member Functions

const T & at_ (def::coord index) const
 Read-only access to the image value located at (index).
T & at_ (def::coord index)
 Read-write access to the image value located at (index).
const box1dbbox () const
 Give the bounding box domain.
unsigned border () const
 Give the border thickness.
const T * buffer () const
 Give a hook to the value buffer.
T * buffer ()
 Give a hook to the value buffer.
int delta_index (const dpoint1d &dp) const
 Give the offset corresponding to the delta-point dp.
void destroy ()
 Detach data from an image (free it if nobody else hold it).
const box1ddomain () const
 Give the definition domain.
const T & element (unsigned i) const
 Read-only access to the i-th image value (including the border).
T & element (unsigned i)
 Read-write access to the i-th image value (including the border).
bool has (const point1d &p) const
 Test if p is valid.
const util::tracked_ptr
< internal::data< image1d< T > > > &
hook_data_ () const
 Hook to the image data.
const void * id_ () const
 Give an identifier of this image.
 image1d ()
 Constructor without argument.
 image1d (unsigned ninds, unsigned bdr=border::thickness)
 Constructor with the number of indices and the border thickness.
 image1d (const box1d &b, unsigned bdr=border::thickness)
 Constructor with a box and the border thickness.
unsigned index_of_point (const P &p) const
 Give the offset of the site p.
void init_ (const box1d &b, unsigned bdr=border::thickness)
 Initialize an empty image.
bool is_valid () const
 Test if this image has been initialized; default impl.
unsigned nelements () const
 Give the number of cells (points including border ones).
unsigned ninds () const
 Give the number of indexes.
std::size_t nsites () const
 Give the number of sites of the image domain.
T & operator() (const point1d &p)
 Read-write access to the image value located at point p.
const T & operator() (const point1d &p) const
 Read-only access to the image value located at point p.
point1d point_at_index (unsigned i) const
 Give the point corresponding to the offset o.
void resize_ (unsigned new_border)
 Resize image border with new_border.
const t_eligible_values_setvalues_eligible () const
const t_values_spacevalues_space () const
 Return the value space of the image.
const box1dvbbox () const
 virtual box, i.e., box including the virtual border

Protected Attributes

util::tracked_ptr
< internal::data< image1d< T > > >
data_

Detailed Description

template<typename T>
struct mln::image1d< T >

Basic 1D image class.

The parameter T is the type of pixel values. This image class stores data in memory and has a virtual border with constant thickness before and after data.

Definition at line 155 of file image1d.hh.


Member Typedef Documentation

typedef box1d ::bkd_piter mln::internal::image_base< T, box1d , image1d< T > >::bkd_piter [inherited]

Backward Site_Iterator associated type.

Definition at line 118 of file core/internal/image_base.hh.

typedef Image<void> mln::Image< image1d< T > >::category [inherited]

Reimplemented from mln::Object< image1d< T > >.

Definition at line 75 of file core/concept/image.hh.

typedef box1d mln::internal::image_base< T, box1d , image1d< T > >::domain_t [inherited]

Site_Set associated type.

Definition at line 105 of file core/internal/image_base.hh.

typedef image1d< T > mln::Object< image1d< T > >::exact_t [inherited]

Definition at line 173 of file object.hh.

typedef box1d ::fwd_piter mln::internal::image_base< T, box1d , image1d< T > >::fwd_piter [inherited]

Forward Site_Iterator associated type.

Definition at line 115 of file core/internal/image_base.hh.

template<typename T>
typedef T& mln::image1d< T >::lvalue

Return type of read-write access.

Definition at line 167 of file image1d.hh.

typedef fwd_piter mln::internal::image_base< T, box1d , image1d< T > >::piter [inherited]

Site_Iterator associated type; default definition is fwd_piter.

Definition at line 123 of file core/internal/image_base.hh.

typedef box1d ::psite mln::internal::image_base< T, box1d , image1d< T > >::psite [inherited]

Point_Site associated type.

Definition at line 108 of file core/internal/image_base.hh.

template<typename T>
typedef const T& mln::image1d< T >::rvalue

Return type of read-only access.

Definition at line 164 of file image1d.hh.

typedef box1d ::site mln::internal::image_base< T, box1d , image1d< T > >::site [inherited]

Site associated type.

Definition at line 111 of file core/internal/image_base.hh.

template<typename T>
typedef image1d< tag::value_<T> > mln::image1d< T >::skeleton

Skeleton.

Definition at line 170 of file image1d.hh.

template<typename T>
typedef internal::image_primary< T, mln::box1d, image1d<T> > mln::image1d< T >::super_

Definition at line 158 of file image1d.hh.

Eligible-value-set associated type.

Definition at line 91 of file core/internal/image_base.hh.

Value space associated type.

Definition at line 98 of file core/internal/image_base.hh.

template<typename T>
typedef T mln::image1d< T >::value

Value associated type.

Reimplemented from mln::internal::image_base< T, box1d, image1d< T > >.

Definition at line 161 of file image1d.hh.


Constructor & Destructor Documentation

template<typename T >
mln::image1d< T >::image1d (  )  [inline]

Constructor without argument.

Definition at line 371 of file image1d.hh.

template<typename T >
mln::image1d< T >::image1d ( unsigned  ninds,
unsigned  bdr = border::thickness
) [inline]

Constructor with the number of indices and the border thickness.

Definition at line 384 of file image1d.hh.

References mln::make::box1d(), and mln::image1d< T >::init_().

template<typename T >
mln::image1d< T >::image1d ( const box1d b,
unsigned  bdr = border::thickness
) [inline]

Constructor with a box and the border thickness.

Definition at line 377 of file image1d.hh.

References mln::image1d< T >::init_().


Member Function Documentation

template<typename T >
const T & mln::image1d< T >::at_ ( def::coord  index  )  const [inline]

Read-only access to the image value located at (index).

Definition at line 474 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

Referenced by mln::world::binary_2d::projected_histo(), and mln::io::plot::save().

template<typename T >
T & mln::image1d< T >::at_ ( def::coord  index  )  [inline]

Read-write access to the image value located at (index).

Definition at line 492 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

template<typename T >
const box1d & mln::image1d< T >::bbox (  )  const [inline]
template<typename T >
unsigned mln::image1d< T >::border (  )  const [inline]
template<typename T >
const T * mln::image1d< T >::buffer (  )  const [inline]
template<typename T >
T * mln::image1d< T >::buffer (  )  [inline]
template<typename T >
int mln::image1d< T >::delta_index ( const dpoint1d dp  )  const [inline]

Give the offset corresponding to the delta-point dp.

Definition at line 538 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

void mln::internal::image_base< T, box1d , image1d< T > >::destroy (  )  [inherited]

Detach data from an image (free it if nobody else hold it).

template<typename T >
const box1d & mln::image1d< T >::domain (  )  const [inline]
template<typename T >
const T & mln::image1d< T >::element ( unsigned  i  )  const [inline]

Read-only access to the i-th image value (including the border).

Definition at line 502 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::nelements().

template<typename T >
T & mln::image1d< T >::element ( unsigned  i  )  [inline]

Read-write access to the i-th image value (including the border).

Definition at line 511 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::nelements().

template<typename T >
bool mln::image1d< T >::has ( const point1d p  )  const [inline]
const util::tracked_ptr< internal::data<image1d< T > > >& mln::internal::image_base< T, box1d , image1d< T > >::hook_data_ (  )  const [inherited]

Hook to the image data.

const void* mln::internal::image_base< T, box1d , image1d< T > >::id_ (  )  const [inherited]

Give an identifier of this image.

When several image variables designate the same image, they share the same identifier.

unsigned mln::internal::check::image_fastest_< image1d< T > , mln::metal::equal< mln_trait_image_speed(image1d< T >), trait::image::speed::fastest >::eval >::index_of_point ( const P &  p  )  const [inherited]

Give the offset of the site p.

Parameters:
[in] p A site.
Warning:
This method is final.
Precondition:
The image has to be initialized and to own the point p.
Postcondition:
p == point_at_index(result)
template<typename T >
void mln::image1d< T >::init_ ( const box1d b,
unsigned  bdr = border::thickness
) [inline]
bool mln::internal::image_base< T, box1d , image1d< T > >::is_valid (  )  const [inherited]
template<typename T >
unsigned mln::image1d< T >::nelements (  )  const [inline]
template<typename T >
unsigned mln::image1d< T >::ninds (  )  const [inline]
std::size_t mln::internal::image_base< T, box1d , image1d< T > >::nsites (  )  const [inherited]

Give the number of sites of the image domain.

template<typename T >
T & mln::image1d< T >::operator() ( const point1d p  )  [inline]

Read-write access to the image value located at point p.

Definition at line 465 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

template<typename T >
const T & mln::image1d< T >::operator() ( const point1d p  )  const [inline]

Read-only access to the image value located at point p.

Definition at line 456 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

template<typename T >
point1d mln::image1d< T >::point_at_index ( unsigned  i  )  const [inline]

Give the point corresponding to the offset o.

Definition at line 548 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::nelements().

template<typename T >
void mln::image1d< T >::resize_ ( unsigned  new_border  )  [inline]

Resize image border with new_border.

Definition at line 560 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_.

const t_eligible_values_set& mln::internal::image_base< T, box1d , image1d< T > >::values_eligible (  )  const [inherited]
const t_values_space& mln::internal::image_base< T, box1d , image1d< T > >::values_space (  )  const [inherited]

Return the value space of the image.

template<typename T >
const box1d & mln::image1d< T >::vbbox (  )  const [inline]

virtual box, i.e., box including the virtual border

Definition at line 420 of file image1d.hh.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().


Member Data Documentation

util::tracked_ptr< internal::data<image1d< T > > > mln::internal::image_base< T, box1d , image1d< T > >::data_ [protected, inherited]
