#include <tree.hh>

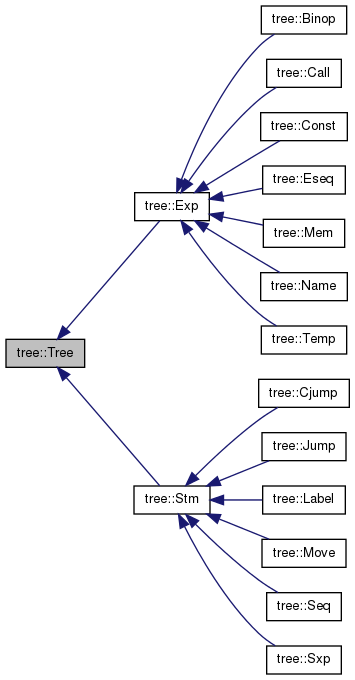

Inheritance diagram for tree::Tree:

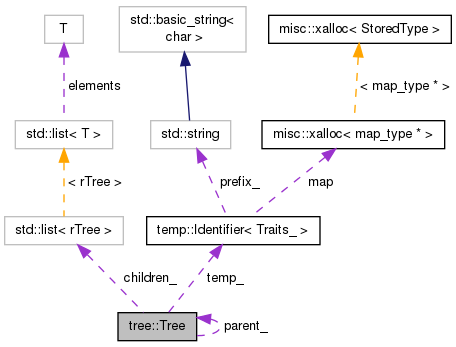

Collaboration diagram for tree::Tree:

Public Member Functions
	Tree ()
	A fresh node.
	Tree (const tree_list_type &children)
	A new node with these children.
virtual	~Tree ()
	Recursively destroy the children.
void	child_push_back (const rTree &tree)
tree_list_type &	children_get ()
const tree_list_type &	children_get () const
rTree &	child_get (int nth)
rTree	child_get (int nth) const
rTree &	left_get ()
rTree &	right_get ()
void	parent_get_assert () const
Tree *	parent_get ()
const Tree *	parent_get () const
void	parent_set (Tree *parent)
void	replace_by (const rTree &tree)
virtual std::ostream &	tag_print (std::ostream &o) const =0
	Report on o the kind of this instruction.
virtual std::ostream &	dump (std::ostream &o) const
	Report this instruction on o.
temp::Temp &	asm_get ()
void	asm_set (const temp::Temp &temp)
void *	state_get () const
void *&	state_get ()
bool	reducible_get () const
void	reducible_set (bool b)

Protected Attributes
tree_list_type	children_
	The arguments.
Tree *	parent_ = nullptr
	The Tree instruction this is a child from.
temp::Temp *	temp_ = nullptr
	The Temp for asm output.
void *	state_ = nullptr
	The state for asm output.
bool	reducible_ = true
	Tell if the tree is reducible.

Private Member Functions
void	child_set (rTree &dst, const rTree &src)

Friends
std::ostream &	operator<< (std::ostream &ostr, const Tree &tree)
	Print t on o.

Kinds of Tree nodes.
enum	kind_tree_type { const_kind, name_kind, temp_kind, binop_kind, mem_kind, call_kind, eseq_kind, move_kind, sxp_kind, jump_kind, cjump_kind, seq_kind, label_kind }
	The kinds of Tree instuctions. More...
virtual kind_tree_type	kind_get () const =0
	The kind of this instruction.

Member Enumeration Documentation

enum tree::Tree::kind_tree_type

The kinds of Tree instuctions.

These flags are used to facilitate the pattern matching during instruction selection. This method is not very clean nevertheless this way is cleaner and more efficient than the use of dynamic_cast<>().

Enumerator:

const_kind
name_kind
temp_kind
binop_kind
mem_kind
call_kind
eseq_kind
move_kind
sxp_kind
jump_kind
cjump_kind
seq_kind
label_kind

Constructor & Destructor Documentation

tree::Tree::Tree ( )

inline

A fresh node.

tree::Tree::Tree ( const tree_list_type & children )

inline

A new node with these children.

tree::Tree::~Tree ( )

virtual

Recursively destroy the children.

References temp_.

Member Function Documentation

temp::Temp & tree::Tree::asm_get ( )

inline

References temp_.

void tree::Tree::asm_set ( const temp::Temp & temp )

inline

References temp_.

rTree & tree::Tree::child_get ( int nth )

inline

References children_, and postcondition.

Referenced by tree::Move::dst_get(), tree::Sxp::exp_get(), tree::Mem::exp_get(), tree::Jump::exp_get(), tree::Eseq::exp_get(), tree::Cjump::flip(), tree::Cjump::label_false_get(), tree::Jump::label_get(), tree::Cjump::label_true_get(), tree::Binop::left_get(), tree::Cjump::left_get(), left_get(), tree::Binop::right_get(), tree::Cjump::right_get(), right_get(), tree::Move::src_get(), and tree::Eseq::stm_get().

rTree tree::Tree::child_get ( int nth ) const

inline

References children_, and postcondition.

void tree::Tree::child_push_back ( const rTree & tree )

inline

References children_.

Referenced by tree::Binop::Binop(), tree::Call::Call(), tree::Cjump::Cjump(), tree::Eseq::Eseq(), tree::Jump::Jump(), tree::Mem::Mem(), tree::Move::Move(), tree::Seq::push_back(), and tree::Sxp::Sxp().

void tree::Tree::child_set	(	rTree &	dst,
		const rTree &	src
	)

inlineprivate

Referenced by replace_by().

tree_list_type & tree::Tree::children_get ( )

inline

References children_.

Referenced by canon::Canon::assemble_stm(), tree::Call::dump(), and tree::Seq::dump().

const tree_list_type & tree::Tree::children_get ( ) const

inline

References children_.

std::ostream & tree::Tree::dump ( std::ostream & o ) const

virtual

Report this instruction on o.

Reimplemented in tree::Seq, tree::Eseq, and tree::Call.

References children_, misc::decindent(), misc::incendl(), and tag_print().

Referenced by tree::operator<<().

virtual kind_tree_type tree::Tree::kind_get ( ) const

pure virtual

The kind of this instruction.

Implemented in tree::Cjump, tree::Binop, tree::Seq, tree::Jump, tree::Eseq, tree::Move, tree::Mem, tree::Sxp, tree::Temp, tree::Call, tree::Label, tree::Name, and tree::Const.

rTree & tree::Tree::left_get ( )

inline

References child_get().

Tree * tree::Tree::parent_get ( )

inline

References parent_.

const Tree * tree::Tree::parent_get ( ) const

inline

References parent_.

void tree::Tree::parent_get_assert ( ) const

References misc::decindent(), misc::incendl(), parent_, and precondition.

Referenced by replace_by().

void tree::Tree::parent_set ( Tree * parent )

inline

References parent_.

bool tree::Tree::reducible_get ( ) const

inline

References reducible_.

void tree::Tree::reducible_set ( bool b )

inline

References children_, and reducible_.

void tree::Tree::replace_by ( const rTree & tree )

References assertion, child_set(), children_, misc::find(), parent_, parent_get_assert(), and precondition.

rTree & tree::Tree::right_get ( )

inline

References child_get().

void * tree::Tree::state_get ( ) const

inline

References state_.

void *& tree::Tree::state_get ( )

inline

References state_.

virtual std::ostream& tree::Tree::tag_print ( std::ostream & o ) const

pure virtual

Report on o the kind of this instruction.

Implemented in tree::Cjump, tree::Binop, tree::Seq, tree::Jump, tree::Eseq, tree::Move, tree::Mem, tree::Sxp, tree::Temp, tree::Call, tree::Label, tree::Name, and tree::Const.

Referenced by dump().

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	ostr,
		const Tree &	tree
	)

friend

Print t on o.

Member Data Documentation

tree_list_type tree::Tree::children_

protected

The arguments.

Referenced by child_get(), child_push_back(), children_get(), dump(), tree::Mem::exp_set(), tree::Cjump::flip(), tree::Cjump::label_false_set(), reducible_set(), and replace_by().

Tree* tree::Tree::parent_ = nullptr

protected

The Tree instruction this is a child from.

Referenced by parent_get(), parent_get_assert(), parent_set(), and replace_by().

bool tree::Tree::reducible_ = true

protected

Tell if the tree is reducible.

Referenced by reducible_get(), and reducible_set().

void* tree::Tree::state_ = nullptr

protected

The state for asm output.

Referenced by state_get().

temp::Temp* tree::Tree::temp_ = nullptr

protected

The Temp for asm output.

Referenced by asm_get(), asm_set(), and ~Tree().

The documentation for this class was generated from the following files:

tree/tree.hh
tree/tree.cc
tree/tree.hxx
