oln::topo::inter_pixel::interpixel< I > Class Template Reference

#include <inter-pixel.hh>

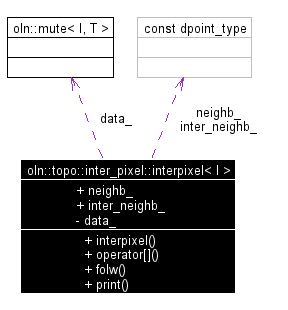

Collaboration diagram for oln::topo::inter_pixel::interpixel< I >:

[legend]List of all members.

Public Types
typedef mlc::exact< I >::ret::dpoint_type	dpoint_type
typedef mlc::exact< I >::ret::point_type	point_type
typedef oln::topo::inter_pixel::node< I >	node_type
typedef oln::topo::inter_pixel::fwd_dir_iter< I::dim >	fwd_dir_iter_type
typedef oln::topo::inter_pixel::bkd_dir_iter< I::dim >	bkd_dir_iter_type
typedef oln::topo::inter_pixel::internal::dir_traits< I::dim >::ret	dir_type
typedef oln::topo::inter_pixel::internal::dir_traits< I::dim >	dir_traits_type
typedef std::pair< typename mlc::exact< I >::ret::point_type, typename oln::topo::inter_pixel::internal::dir_traits< I::dim >::ret >	head_type
typedef oln::mute< I, oln::topo::inter_pixel::node< I > >::ret	inter_pixel_type
Public Member Functions
	interpixel (const I &img)
	Construct an inter pixel map of the image img.
const node_type	operator[] (const point_type &p) const
head_type	folw (const head_type &in) const
std::ostream &	print (std::ostream &ostr) const
	Print the inter pixel map.
Static Public Attributes
const dpoint_type	neighb_ [4]
const dpoint_type	inter_neighb_ [4]

---

Detailed Description

template<class I>
class oln::topo::inter_pixel::interpixel< I >

Inter pixel class.

This example give the node of the black connected component (bottom left).

 #include <ntg/int.hh>
 #include <oln/basics2d.hh>
 #include <oln/topo/inter-pixel/inter-pixel.hh>
 #include <iostream>
 using namespace oln::topo::inter_pixel;

 int main()
 {
   typedef oln::image2d<ntg::int_u8> img_type;
   img_type in = oln::load(IMG_IN "test-cmap.pgm");
   interpixel<oln::image2d<ntg::int_u8> > ip(in);
   std::cout << ip << std::endl;
   // Print:
   //  (5,0): east north south
   //  (5,5): north west south
   //  (7,5): east north west
   //  (10,9): east north west
   //  (10,11): north west south
   //  (11,14): north west south
 }

Todo:

FIXME: Test the output values in the tests.

Definition at line 75 of file inter-pixel.hh.

---

Member Function Documentation

template<class I> head_type oln::topo::inter_pixel::interpixel< I >::folw (  const head_type &  in  )  const [inline]

Todo: FIXME: add doc. Precondition: precondition(data_[in.first].get(in.second) == true) Definition at line 120 of file inter-pixel.hh. { precondition(data_[in.first].get(in.second) == true); head_type out = in; do { out.first += inter_neighb_[out.second]; if (out.first == in.first || data_[out.first].rank() > 2) { out.second = dir_traits_type::opposite(out.second); break; } dir_type next = dir_traits_type::next(out.second); dir_type prev = dir_traits_type::prev(out.second); out.second = data_[out.first].get(next) ? next : data_[out.first].get(prev) ? prev : out.second; } while (out.first != in.first); return out; }

template<class I> const node_type oln::topo::inter_pixel::interpixel< I >::operator[] (  const point_type &  p  )  const [inline]

Todo: FIXME: add doc. Definition at line 110 of file inter-pixel.hh. { return data_[p]; }

---

Member Data Documentation

template<class I> const mlc::exact< I >::ret::dpoint_type oln::topo::inter_pixel::interpixel< I >::inter_neighb_ [static]

Initial value: {typename mlc::exact< I >::ret::dpoint_type(0,1), typename mlc::exact< I >::ret::dpoint_type(-1,0), typename mlc::exact< I >::ret::dpoint_type(0,-1), typename mlc::exact< I >::ret::dpoint_type(1,0)} Definition at line 198 of file inter-pixel.hh.

template<class I> const mlc::exact< I >::ret::dpoint_type oln::topo::inter_pixel::interpixel< I >::neighb_ [static]

Initial value: {typename mlc::exact< I >::ret::dpoint_type(0,0), typename mlc::exact< I >::ret::dpoint_type(-1,0), typename mlc::exact< I >::ret::dpoint_type(-1,-1), typename mlc::exact< I >::ret::dpoint_type(0,-1)} Definition at line 192 of file inter-pixel.hh.

---

The documentation for this class was generated from the following file:

• inter-pixel.hh

---
