oln::morpher::subq_morpher< SrcType, N, Exact > Struct Template Reference

Sub quantify an image. More...

#include <subq_morpher.hh>

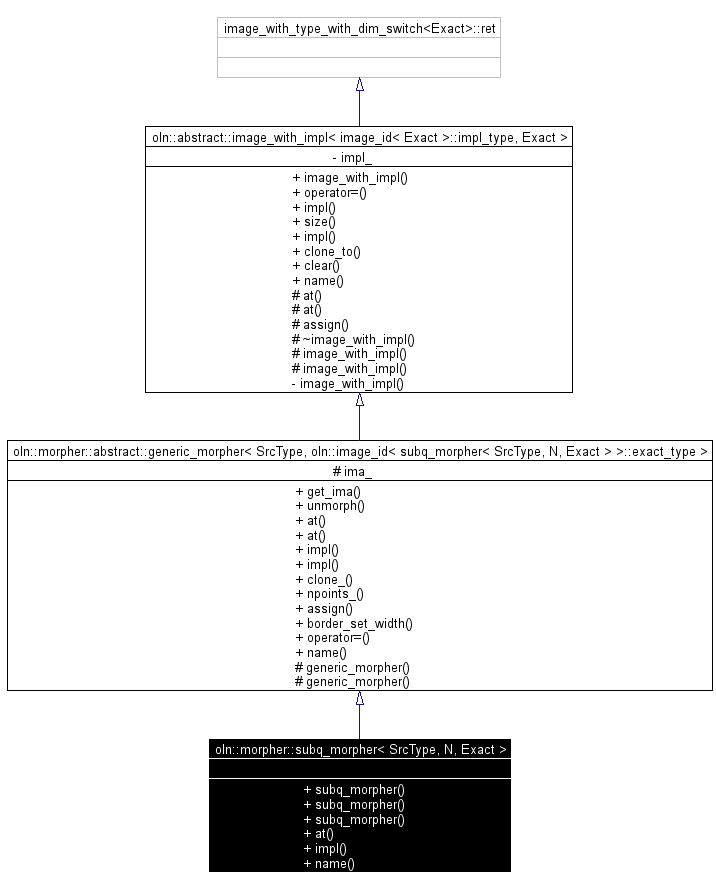

Inheritance diagram for oln::morpher::subq_morpher< SrcType, N, Exact >:

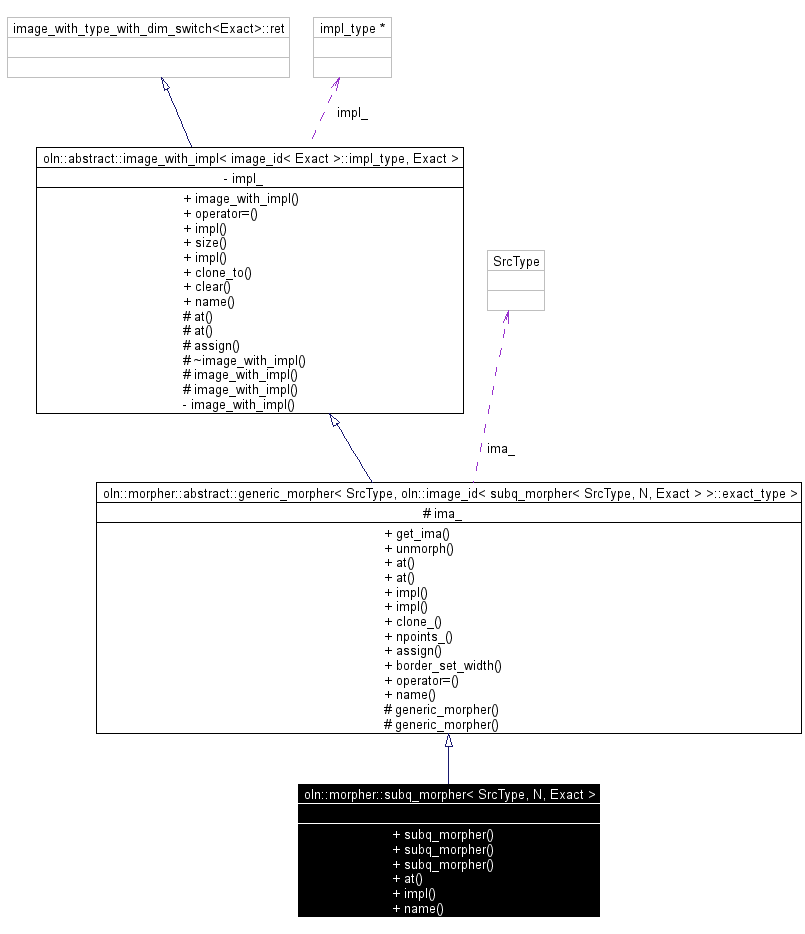

[legend]Collaboration diagram for oln::morpher::subq_morpher< SrcType, N, Exact >:

[legend]List of all members.

Public Types
typedef oln::image_id< subq_morpher< SrcType, N, Exact > >::exact_type	exact_type
	The exact type of this. This class can be derived.
typedef abstract::generic_morpher< SrcType, exact_type >	super_type
	The upper class.
typedef image_id< exact_type >::value_type	value_type
	The value point of the resulting image.
typedef image_id< exact_type >::point_type	point_type
	The morpher point type.
typedef image_id< exact_type >::impl_type	impl_type
	The morpher underlying implementation.
enum	{ nbcomps = color_mute<typename mlc::exact< SrcType >::ret::value_type, nbcomps = color_mute<typename mlc::exact< SrcType >::ret::value_type }
Public Member Functions
	subq_morpher (const SrcType &ima)
	Construct the morpher with an image.
	subq_morpher (const subq_morpher< SrcType, N > &r)
	Construct the morpher with another morpher.
	subq_morpher ()
const value_type	at (const point_type &p) const
	Return the value stored at p in the resulting image.
const impl_type *	impl () const
	Return the implementation.
Static Public Member Functions
std::string	name ()

---

Detailed Description

template<class SrcType, unsigned N, class Exact>
struct oln::morpher::subq_morpher< SrcType, N, Exact >

Sub quantify an image.

By using this class, an image can be viewed as an image with a lower color depth. subq_morpher<image2d<rgb_8>, 5> is the same as image2d<rgb_5>.

Parameters:

SrcType	The input type decorated.
N	The new numbers of bits by component.
Exact	The exact type of the morpher.

Definition at line 133 of file subq_morpher.hh.

---

Constructor & Destructor Documentation

template<class SrcType, unsigned N, class Exact> oln::morpher::subq_morpher< SrcType, N, Exact >::subq_morpher (   )  [inline]

Empty constructor. Needed by mlc_hierarchy::any_with_diamond. Definition at line 166 of file subq_morpher.hh. {}

---

The documentation for this struct was generated from the following file:

• subq_morpher.hh

---
