oln::topo::tarjan::flat_zone< T, DestType, A, Exact > Struct Template Reference

#include <flat-zone.hh>

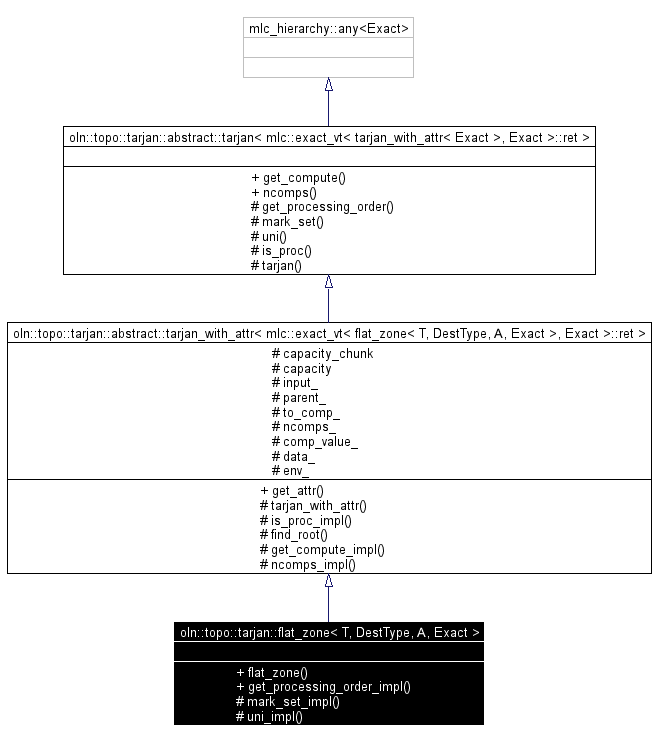

Inheritance diagram for oln::topo::tarjan::flat_zone< T, DestType, A, Exact >:

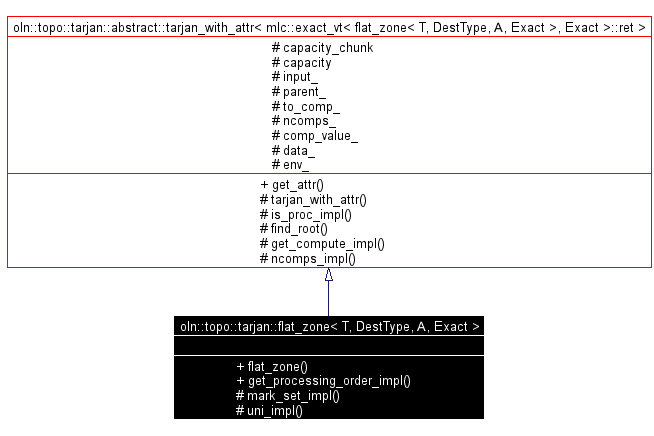

[legend]Collaboration diagram for oln::topo::tarjan::flat_zone< T, DestType, A, Exact >:

[legend]List of all members.

Public Types
typedef mlc::exact< T >::ret::point_type	point_type
	Type of input image.
typedef mlc::exact< T >::ret::value_type	data_type
	Data type of the input image.
typedef oln::mute< T >::ret	image_type
	Concrete type of the input image.
typedef DestType	comp_type
	Type of components.
typedef flat_zone< T, DestType, A, Exact >	self_type
	Self type of the class.
typedef mlc::exact_vt< self_type, Exact >::ret	exact_type
	Exact type of the class.
typedef abstract::tarjan_with_attr< exact_type >	super_type
	Type of parent class.
Public Member Functions
	flat_zone (const image_type &ima, const typename oln::morpho::attr::attr_traits< A >::env_type &env=typename oln::morpho::attr::attr_traits< A >::env_type())
	Constructor.
std::vector< point_type >	get_processing_order_impl ()
Protected Member Functions
void	mark_set_impl (const point_type &x)
	Implementation of mark_set().
void	uni_impl (const point_type &n, const point_type &p)
	Implementation of uni().
Friends
class	abstract::tarjan< exact_type >

---

Detailed Description

template<class T, class DestType = unsigned, class A = oln::morpho::attr::card_type<>, class Exact = mlc::final>
struct oln::topo::tarjan::flat_zone< T, DestType, A, Exact >

Create an image of label of the flat zones.

Parameters:

T	Type of he input image.
DestType	Data type of the output image (label type).
A	Attribute you want to compute.
Exact	Exact type of the class.

 #include <oln/basics2d.hh>
 #include <oln/topo/tarjan/flat-zone.hh>
 #include <oln/convert/stretch.hh>

 int main()
 {
   typedef oln::image2d<ntg::int_u8> img_type;
   img_type in = oln::load(IMG_IN "test-cmap.pgm");
   oln::topo::tarjan::flat_zone<img_type> z(in);
   save(oln::convert::stretch_balance<ntg::int_u8>(z.get_compute(oln::neighb_c4()), 0, 255),
        IMG_OUT "oln_topo_flat_zone.pgm");
  }

input image

=>

output image

Definition at line 75 of file flat-zone.hh.

---

Constructor & Destructor Documentation

template<class T, class DestType = unsigned, class A = oln::morpho::attr::card_type<>, class Exact = mlc::final> oln::topo::tarjan::flat_zone< T, DestType, A, Exact >::flat_zone (  const image_type &  ima, const typename oln::morpho::attr::attr_traits< A >::env_type &  env = typename oln::morpho::attr::attr_traits< A >::env_type() )  [inline]

Constructor. ima Input image. env Environment to use to compute the attributes. Definition at line 98 of file flat-zone.hh. : super_type(ima, env) { }

---

Member Function Documentation

template<class T, class DestType = unsigned, class A = oln::morpho::attr::card_type<>, class Exact = mlc::final> void oln::topo::tarjan::flat_zone< T, DestType, A, Exact >::mark_set_impl (  const point_type &  x  )  [inline, protected]

Implementation of mark_set(). x Root of the new component. Warning: Do not call this method, use mark_set() instead. Definition at line 125 of file flat-zone.hh. { if (parent_.size() == parent_.capacity()) { capacity = parent_.capacity() + capacity_chunk; parent_.reserve(capacity); comp_value_.reserve(capacity); } to_comp_[x] = ncomps_ + 1; data_.push_back(A(input_, x, env_)); parent_.push_back(ncomps_ + 1); comp_value_.push_back(ncomps_ + 1); }

template<class T, class DestType = unsigned, class A = oln::morpho::attr::card_type<>, class Exact = mlc::final> void oln::topo::tarjan::flat_zone< T, DestType, A, Exact >::uni_impl (  const point_type &  n, const point_type &  p )  [inline, protected]

Implementation of uni(). n A point of the first component. p A point of the second component. Warning: Do not call this method, use uni() instead. Definition at line 148 of file flat-zone.hh. References oln::topo::tarjan::flat_zone< T, DestType, A, Exact >::comp_type, and oln::topo::tarjan::abstract::tarjan_with_attr< Exact >::find_root(). { comp_type r = find_root(to_comp_[n]); precondition(to_comp_[n] <= ncomps_); precondition(to_comp_[p] <= (ncomps_ + 1)); if (r != to_comp_[p]) if (input_[n] == input_[p]) { if (to_comp_[p] == (ncomps_ + 1)) // first merge of p component { precondition(r < comp_value_.capacity()); data_[r] += data_[to_comp_[p]]; precondition(r <= ncomps_); to_comp_[p] = r; } else { precondition(r < parent_.capacity()); data_[parent_[to_comp_[p]]] += data_[parent_[r]]; parent_[r] = parent_[to_comp_[p]]; } } }

---

The documentation for this struct was generated from the following file:

• flat-zone.hh

---
