oln::level::threshold< Input, Output, Exact > Class Template Reference

Threshold the value of the image. More...

#include <threshold.hh>

Inheritance diagram for oln::level::threshold< Input, Output, Exact >:

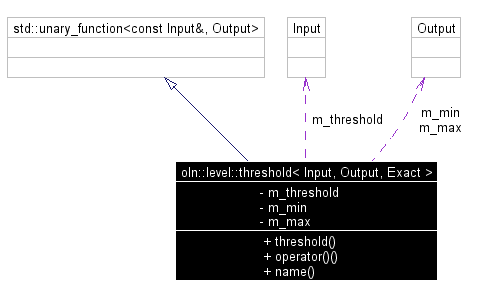

[legend]Collaboration diagram for oln::level::threshold< Input, Output, Exact >:

[legend]List of all members.

Public Member Functions
	threshold (const Input &threshold, const Output &min=ntg::type_traits< Output >::min(), const Output &max=ntg::type_traits< Output >::max())
Output	operator() (const Input &v) const
Static Public Member Functions
std::string	name ()

---

Detailed Description

template<class Input, class Output, class Exact = mlc::final>
class oln::level::threshold< Input, Output, Exact >

Threshold the value of the image.

 #include <oln/basics2d.hh>
 #include <oln/level/threshold.hh>
 #include <ntg/all.hh>
 using namespace ntg;
 int main()
 {
   oln::image2d<int_u8> in = oln::load(IMG_IN "lena256.pgm");
   int_u8 th    = 127;
   rgb_8 low    = rgb_8(100, 0, 0);
   rgb_8 height = rgb_8(0, 200, 255);

   oln::image2d<rgb_8> out
     = apply(oln::level::threshold<int_u8, rgb_8 >(th, low, height),
            in);
   save(out, IMG_OUT "oln_level_threshold.ppm");
 }

=>

Definition at line 65 of file threshold.hh.

---

Constructor & Destructor Documentation

template<class Input, class Output, class Exact = mlc::final> oln::level::threshold< Input, Output, Exact >::threshold (  const Input &  threshold, const Output &  min = ntg::type_traits< Output >::min(), const Output &  max = ntg::type_traits< Output >::max() )  [inline]

Threshold any value heigher or equal to this value will return min. min Value returned if the input is smaller than threshold. max Value returned if the input is greater or equal to the threshold. Definition at line 74 of file threshold.hh. : m_threshold(threshold), m_min(min), m_max(max) {}

---

The documentation for this class was generated from the following file:

• threshold.hh

---
