oln::window1d Class Reference

Window 1 dimension. More...

#include <window1d.hh>

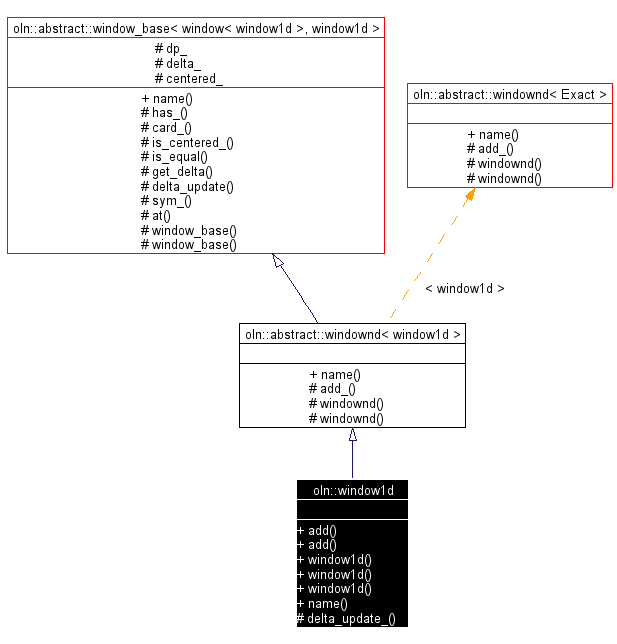

Inheritance diagram for oln::window1d:

[legend]Collaboration diagram for oln::window1d:

[legend]List of all members.

Public Types
typedef abstract::windownd< window1d >	super_type
	The super type.
typedef window1d	self_type
	The self type.
typedef struct_elt_traits< self_type >::iter_type	iter_type
	The associate image's type of iterator.
typedef struct_elt_traits< self_type >::neighb_type	neighb_type
	Type of neighbor.
typedef struct_elt_traits< self_type >::dpoint_type	dpoint_type
	The associate image's type of dpoint (move point).
Public Member Functions
window1d &	add (const dpoint_type &dp)
	Add a dpoint (move point) to the window. dp The new point.
window1d &	add (coord col)
	Add a point by coordinates to the window. col The coordinate of the new point (1 dimension).
	window1d ()
	Construct a window of 1 dimension.
	window1d (unsigned size)
	Construct a window of 1 dimension. size The number of element.
	window1d (unsigned n, const coord crd[])
	Construct a window of 1 dimension from several points. n The number of element. crd The coordinates of the elements.
Static Public Member Functions
std::string	name ()
	Return the name of the type.
Protected Member Functions
coord	delta_update_ (const dpoint_type &dp)
	Update delta. dp a move point.
Friends
class	abstract::window_base< abstract::window< window1d >, window1d >

---

Detailed Description

Window 1 dimension.

A window is a set of points. This class defines how to deal with. These points have 1 dimension.

Definition at line 63 of file window1d.hh.

---

Member Typedef Documentation

typedef struct_elt_traits< self_type >::dpoint_type oln::window1d::dpoint_type

The associate image's type of dpoint (move point). Warning: Prefer the macros oln_dpoint_type(Pointable) and oln_dpoint_type_(Pointable) (the same without the 'typename' keyword) Reimplemented from oln::abstract::windownd< window1d >. Definition at line 87 of file window1d.hh. Referenced by add(), and window1d().

typedef struct_elt_traits< self_type >::iter_type oln::window1d::iter_type

The associate image's type of iterator. Warning: Prefer the macros oln_iter_type(Iterable) and oln_iter_type_(Iterable) (the same without the 'typename' keyword) Definition at line 77 of file window1d.hh.

---

Member Function Documentation

window1d& oln::window1d::add (  coord  col  )  [inline]

Add a point by coordinates to the window. col The coordinate of the new point (1 dimension). Add a new member by its coordinates to the window. The coordinates are only the column number because the window is of 1 dimension. Definition at line 113 of file window1d.hh. References add(), oln::coord, and dpoint_type. { return this->add(dpoint_type(col)); }

window1d& oln::window1d::add (  const dpoint_type &  dp  )  [inline]

Add a dpoint (move point) to the window. dp The new point. Add a new member to the neighborhood. This point must be of 1 dimension. Definition at line 99 of file window1d.hh. Referenced by add(), oln::mk_win_from_neighb(), oln::mk_win_segment(), and window1d(). { return this->exact().add_(dp); }

coord oln::window1d::delta_update_ (  const dpoint_type &  dp  )  [inline, protected]

Update delta. dp a move point. Returns: Delta. If the point is the biggest element of the window. then this point is assigned to delta. Definition at line 160 of file window1d.hh. References oln::abstract::window_base< window< window1d >, window1d >::delta_. { delta_(abs(dp.col())); return delta_; }

---

The documentation for this class was generated from the following file:

• window1d.hh

---
