oln::abstract::neighborhood< Exact > Struct Template Reference

Neighborhood. More...

#include <neighborhood.hh>

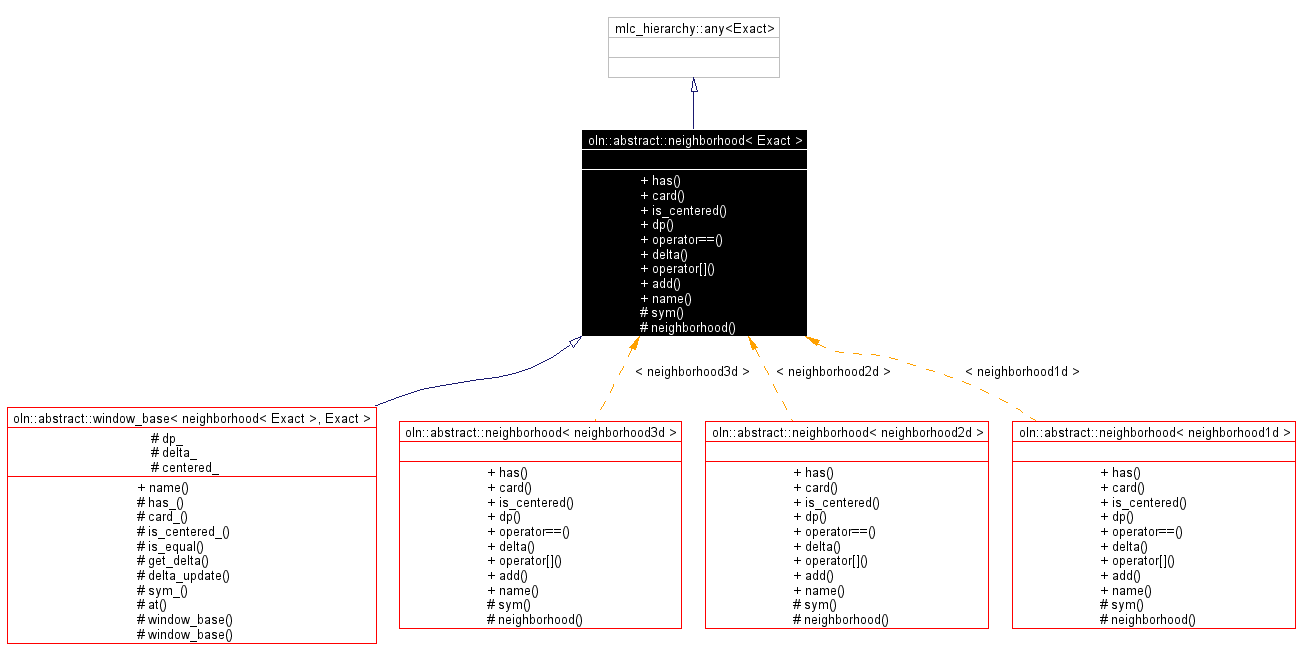

Inheritance diagram for oln::abstract::neighborhood< Exact >:

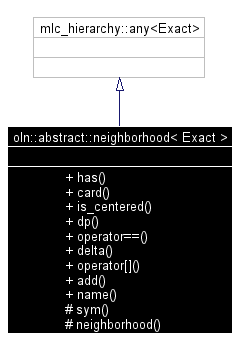

[legend]Collaboration diagram for oln::abstract::neighborhood< Exact >:

[legend]List of all members.

Public Types
typedef Exact	exact_type
	Set the exact type.
typedef neighborhood< Exact >	self_type
	Set its type.
typedef struct_elt_traits< Exact >::iter_type	iter_type
	The associate image's type of iterator.
typedef struct_elt_traits< Exact >::neighb_type	neighb_type
	Set the neighborhood type.
typedef struct_elt_traits< Exact >::win_type	win_type
	Set the window type.
typedef struct_elt_traits< Exact >::dpoint_type	dpoint_type
	The associate image's type of dpoint (move point).
typedef struct_elt_traits< Exact >::abstract_type	abstract_type
	Set the abstract type.
enum	{ dim = struct_elt_traits<Exact>::dim }
Public Member Functions
bool	has (const abstract::dpoint< dpoint_type > &dp) const
	Test if the set of points contains this one. dp a dpoint (deplacement point).
unsigned	card () const
	Get the number of points.
bool	is_centered () const
	Test if the neighborhood is centered.
const dpoint_type	dp (unsigned i) const
	Get the nth element of the neighborhood. i The nth.
bool	operator== (const self_type &win) const
	Compare two sets of structuring elements. win The structuring elements to compare.
coord	delta () const
	Get the delta of the neighborhood.
const dpoint_type	operator[] (unsigned i) const
	Get the nth element of the neighborhood. i The nth.
exact_type &	add (const abstract::dpoint< dpoint_type > &dp)
	Add a point to the neighborhood. dp The new point.
Static Public Member Functions
std::string	name ()
	Return the name of the type.
Protected Member Functions
void	sym ()
	Set neighborhood to opposite.
	neighborhood ()
	Do nothing, used only by sub-classes.

---

Detailed Description

template<class Exact>
struct oln::abstract::neighborhood< Exact >

Neighborhood.

It looks like structuring elements but here, when you add an element, you add its opposite. This abstract class defines several virtual methods for his subclasses. Its goal is to deal with a set of deplacement points.

Definition at line 65 of file neighborhood.hh.

---

Member Typedef Documentation

template<class Exact> typedef struct_elt_traits<Exact>::dpoint_type oln::abstract::neighborhood< Exact >::dpoint_type

The associate image's type of dpoint (move point). Warning: Prefer the macros oln_dpoint_type(Pointable) and oln_dpoint_type_(Pointable) (the same without the 'typename' keyword) Reimplemented in oln::abstract::neighborhoodnd< Exact >, oln::neighborhood1d, oln::neighborhood2d, oln::neighborhood3d, oln::abstract::neighborhoodnd< neighborhood3d >, oln::abstract::neighborhoodnd< neighborhood2d >, oln::abstract::neighborhoodnd< neighborhood1d >, oln::abstract::window_base< neighborhood< neighborhood2d >, neighborhood2d >, oln::abstract::window_base< neighborhood< neighborhood3d >, neighborhood3d >, oln::abstract::window_base< neighborhood< neighborhood1d >, neighborhood1d >, and oln::abstract::window_base< neighborhood< Exact >, Exact >. Definition at line 87 of file neighborhood.hh.

template<class Exact> typedef struct_elt_traits<Exact>::iter_type oln::abstract::neighborhood< Exact >::iter_type

The associate image's type of iterator. Warning: Prefer the macros oln_iter_type(Iterable) and oln_iter_type_(Iterable) (the same without the 'typename' keyword) Reimplemented in oln::neighborhood1d, oln::neighborhood2d, and oln::neighborhood3d. Definition at line 75 of file neighborhood.hh.

---

Member Function Documentation

template<class Exact> exact_type& oln::abstract::neighborhood< Exact >::add (  const abstract::dpoint< dpoint_type > &  dp  )  [inline]

Add a point to the neighborhood. dp The new point. Add a new member to the neighborhood. Definition at line 188 of file neighborhood.hh. Referenced by oln::convert::ng_to_cse(), and oln::convert::ng_to_se(). { this->exact().add_(dp.exact()); return this->exact().add_(-dp.exact()); }

template<class Exact> unsigned oln::abstract::neighborhood< Exact >::card (   )  const [inline]

Get the number of points. Returns: The number of points. Definition at line 118 of file neighborhood.hh. Referenced by oln::inter(), oln::mk_win_from_neighb(), and oln::uni(). { return this->exact().card_(); }

template<class Exact> coord oln::abstract::neighborhood< Exact >::delta (   )  const [inline]

Get the delta of the neighborhood. Returns: Delta. Delta is the biggest element of the neighborhood. Definition at line 165 of file neighborhood.hh. Referenced by oln::morpho::sure::geodesic_dilation(), oln::morpho::sure::geodesic_erosion(), oln::morpho::hybrid::geodesic_reconstruction_dilation(), oln::morpho::hybrid::geodesic_reconstruction_erosion(), oln::morpho::fast::tarjan::tarjan_set< T, ATTRIBUTE, Env >::get_comptute(), and oln::topo::tarjan::abstract::tarjan_with_attr< mlc::exact_vt< flat_zone< T, DestType, A, Exact >, Exact >::ret >::get_compute_impl(). { return this->exact().get_delta(); }

template<class Exact> const dpoint_type oln::abstract::neighborhood< Exact >::dp (  unsigned  i  )  const [inline]

Get the nth element of the neighborhood. i The nth. Returns: The nth dpoint. Definition at line 142 of file neighborhood.hh. Referenced by oln::inter(), oln::mk_win_from_neighb(), and oln::uni(). { return this->exact()[i]; }

template<class Exact> bool oln::abstract::neighborhood< Exact >::has (  const abstract::dpoint< dpoint_type > &  dp  )  const [inline]

Test if the set of points contains this one. dp a dpoint (deplacement point). Returns: True if the set of points contains this dpoint. Definition at line 108 of file neighborhood.hh. Referenced by oln::inter(). { return this->exact().has_(dp.exact()); }

template<class Exact> bool oln::abstract::neighborhood< Exact >::is_centered (  void   )  const [inline]

Test if the neighborhood is centered. Returns: True if it's centered. Neighborhood are centered when they contains at least one element. Definition at line 131 of file neighborhood.hh. { return this->exact().is_centered_(); }

template<class Exact> bool oln::abstract::neighborhood< Exact >::operator== (  const self_type &  win  )  const [inline]

Compare two sets of structuring elements. win The structuring elements to compare. Returns: True if they are the same. Definition at line 153 of file neighborhood.hh. { return this->exact().is_equal(win.exact()); }

template<class Exact> const dpoint_type oln::abstract::neighborhood< Exact >::operator[] (  unsigned  i  )  const [inline]

Get the nth element of the neighborhood. i The nth. Returns: The nth dpoint. Definition at line 176 of file neighborhood.hh. { return this->exact().at(i); }

template<class Exact> void oln::abstract::neighborhood< Exact >::sym (   )  [inline, protected]

Set neighborhood to opposite. Each point of neighborhood is assigned to its opposite. Definition at line 211 of file neighborhood.hh. { this->exact().sym_(); }

---

The documentation for this struct was generated from the following file:

• neighborhood.hh

---
