oln::abstract::iter1d< Exact > Class Template Reference

Iterator on image of 1 dimension. More...

#include <iter1d.hh>

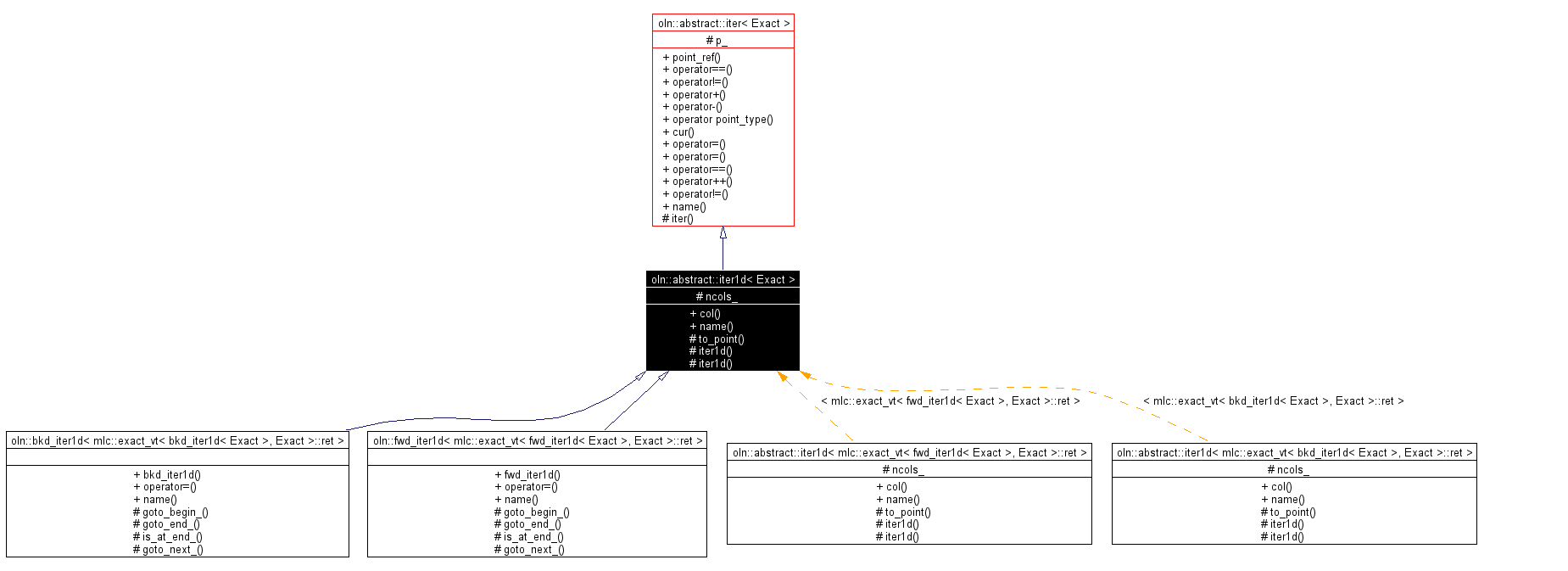

Inheritance diagram for oln::abstract::iter1d< Exact >:

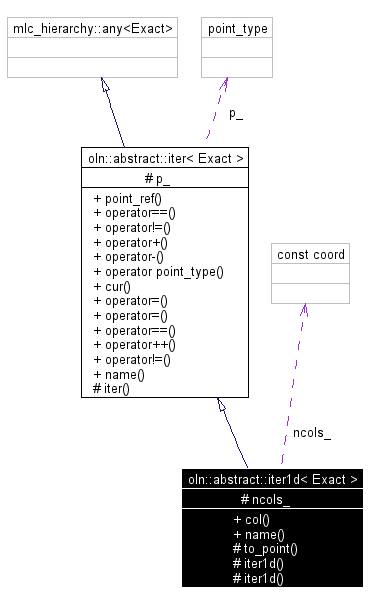

[legend]Collaboration diagram for oln::abstract::iter1d< Exact >:

[legend]List of all members.

Public Types
typedef iter< Exact >	super_type
	The exact type of the object.
Public Member Functions
coord	col () const
	Get the coordinates of iterator's current point.
Static Public Member Functions
std::string	name ()
	Return the name of the type.
Protected Member Functions
point1d	to_point () const
	Get the current point viewed by the iterator.
	iter1d ()
	Constructor.
	iter1d (const image1d_size &size)
	Constructor size The size of the image to iterate.
Protected Attributes
const coord	ncols_
	The number of columns of the image you are iterating.
Friends
class	iter< Exact >

---

Detailed Description

template<class Exact>
class oln::abstract::iter1d< Exact >

Iterator on image of 1 dimension.

Allow iterable object (like image, window, ...) of 1 dimension traversing.

See also:

iter

Definition at line 70 of file iter1d.hh.

---

Constructor & Destructor Documentation

template<class Exact> oln::abstract::iter1d< Exact >::iter1d (  const image1d_size &  size  )  [inline, protected]

Constructor size The size of the image to iterate. Precondition: size.ncols() > 0. Construct an iterator (1d) on an image (1d). Definition at line 128 of file iter1d.hh. 00128 : 00129 super_type(), ncols_(size.ncols()) 00130 { 00131 precondition(size.ncols() > 0); 00132 this->exact().goto_begin_(); 00133 } };

---

Member Function Documentation

template<class Exact> coord oln::abstract::iter1d< Exact >::col (   )  const [inline]

Get the coordinates of iterator's current point. On this kind of image, all point are on the same line. So you are able to get the column number by this way (and never the line number). Definition at line 86 of file iter1d.hh. { return this->p_.col(); }

template<class Exact> point1d oln::abstract::iter1d< Exact >::to_point (   )  const [inline, protected]

Get the current point viewed by the iterator. Returns: The point (1 dimension) viewed by the iterator. Precondition: Instance != end. Definition at line 107 of file iter1d.hh. { precondition(*this != end); invariant(this->p_.col() >= 0 && this->p_.col() < ncols_); return this->p_; }

---

The documentation for this class was generated from the following file:

• iter1d.hh

---
