oln::abstract::iter< Exact > Struct Template Reference

Iterator. More...

#include <iter.hh>

Inheritance diagram for oln::abstract::iter< Exact >:

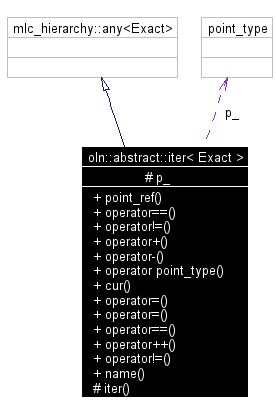

[legend]Collaboration diagram for oln::abstract::iter< Exact >:

[legend]List of all members.

Public Types
typedef iter_traits< Exact >::point_type	point_type
	The associate image's type of point.
typedef iter_traits< Exact >::dpoint_type	dpoint_type
	The associate image's type of dpoint (move point).
Public Member Functions
const point_type &	point_ref () const
	Accessor to current iterator's point.
bool	operator== (const abstract::point< point_type > &p) const
	Compare with the current iterator's point. p The iterator's point to be compared to the current point.
bool	operator!= (const abstract::point< point_type > &p) const
	Compare with the current iterator's point. p The iterator's point to be compared to the current point.
point_type	operator+ (const abstract::dpoint< dpoint_type > &dp) const
	Sum a move point to the current point. p The move point.
point_type	operator- (const abstract::dpoint< dpoint_type > &dp) const
	Minor a move to the current point. p The move.
	operator point_type () const
	Cast to exact point type.
point_type	cur () const
	Syntax improvement.
mlc::begin_type	operator= (mlc::begin_type b)
	Set current point to the first iterator's point.
mlc::end_type	operator= (mlc::end_type e)
	Set current point to the last iterator's point.
bool	operator== (mlc::end_type) const
	Compare current point and last point.
void	operator++ ()
	Go to the next iterator's point.
bool	operator!= (mlc::end_type e) const
	Compare current point and last point.
Static Public Member Functions
std::string	name ()
	Return the name of the type.
Protected Member Functions
	iter ()
	Constructor.
Protected Attributes
point_type	p_
	The iterator's current point.

---

Detailed Description

template<class Exact>
struct oln::abstract::iter< Exact >

Iterator.

Allow iterable object (like image, window, ...) traversing.

Warning:

To know the type of iterator you need for an iterable object, use the macro oln_iter_type(Iterable) or oln_iter_type_(Iterable) (same without 'typename' keyword) rather than Iterable::iter_type.

Simple use of iterators:

 #include <oln/basics2d.hh>
 #include <ntg/all.hh>
 #include <iostream>
 #include <assert.h>
 using namespace oln;
 using namespace ntg;
 int main(int argc, char **argv)
 {
   image2d<bin> image1 = load(IMG_IN "se.pbm");
   assert(image1.has_impl());
   oln_iter_type_(image2d<bin>) i(image1);
   for_all(i)
   {
     std::cout << image1[i] << std::endl;
   }
 }

This code is equivalent to the previous one but DEPRECATED (prefer to use the for_all macro):

 #include <oln/basics2d.hh>
 #include <ntg/all.hh>
 #include <iostream>
 #include <assert.h>
 using namespace oln;
 using namespace ntg;
 int main(int argc, char **argv)
 {
   image2d<bin> image1 = load(IMG_IN "se.pbm");
   assert(image1.has_impl());
   for (int row = 0; row < image1.nrows(); ++row)
     for (int col = 0; col < image1.ncols(); ++col)
       std::cout << image1(row, col) << std::endl;
 }

You can use the same iterator on several image if they have the same size.

 #include <oln/basics2d.hh>
 #include <ntg/all.hh>
 #include <iostream>
 #include <assert.h>
 using namespace oln;
 using namespace ntg;
 int main(int argc, char **argv)
 {
   image2d<bin> image1 = load(IMG_IN "se.pbm");
   image2d<bin> image2 = load(IMG_IN "se.pbm");
   assert(image1.has_impl());
   assert(image2.has_impl());
   oln_iter_type_(image2d<bin>) i(image1);
   for_all(i)
   {
     std::cout << "image1:" << image1[i] << std::endl;
     std::cout << "image2:" << image2[i] << std::endl;
   }
   return 0;
 }

You can iterate not only image but windows. This example make a binary dilatation to show you how to use them:

 #include <oln/basics2d.hh>
 #include <ntg/all.hh>
 #include <iostream>
 #include <assert.h>
 using namespace oln;
 using namespace ntg;
 int main(int argc, char **argv)
 {
   image2d<bin> image1 = load(IMG_IN "object.pbm");
   assert(image1.has_impl());
   image2d<bin> image1_out(image1.size());
   oln_iter_type_(image2d<bin>) i(image1);
   for_all(i)
   {
     image1_out[i] = image1[i];
     if (!image1[i])
     {
       window2d win = win_c8_only();
       oln_iter_type_(window2d) j(win);
       bool change_color = false;
       for_all(j)
       {
         if (image1[i + j])
           change_color = true;
       }
       image1_out[i] = change_color;
     }
   }
   save(image1_out, IMG_OUT "oln_abstract_iter.pbm");
   return 0;
 }

=>

Definition at line 179 of file iter.hh.

---

Member Typedef Documentation

template<class Exact> typedef iter_traits<Exact>::dpoint_type oln::abstract::iter< Exact >::dpoint_type

The associate image's type of dpoint (move point). Warning: Prefer the macros oln_dpoint_type(Pointable) and oln_dpoint_type_(Pointable) (the same without the 'typename' keyword) Definition at line 192 of file iter.hh.

template<class Exact> typedef iter_traits<Exact>::point_type oln::abstract::iter< Exact >::point_type

The associate image's type of point. Warning: Prefer the macros oln_point_type(Pointable) and oln_point_type_(Pointable) (the same without the 'typename' keyword) Reimplemented in oln::bkd_iter1d< Exact >, oln::bkd_iter2d< Exact >, oln::bkd_iter3d< Exact >, oln::fwd_iter1d< Exact >, oln::fwd_iter2d< Exact >, and oln::fwd_iter3d< Exact >. Definition at line 186 of file iter.hh.

---

Constructor & Destructor Documentation

template<class Exact> oln::abstract::iter< Exact >::iter (   )  [inline, protected]

Constructor. Do nothing, used only by sub-classes Definition at line 377 of file iter.hh. {}

---

Member Function Documentation

template<class Exact> point_type oln::abstract::iter< Exact >::cur (   )  const [inline]

Syntax improvement. It's convenient to type `it.cur()' instead of `(point)it' when necessary. Definition at line 280 of file iter.hh. { return *this; }

template<class Exact> oln::abstract::iter< Exact >::operator point_type (   )  const [inline]

Cast to exact point type. Returns: The exact point type. Return the exact point type by calling sub-classes methods. Definition at line 268 of file iter.hh. { return this->exact().to_point(); }

template<class Exact> bool oln::abstract::iter< Exact >::operator!= (  mlc::end_type  e  )  const [inline]

Compare current point and last point. Returns: True if they are different. Compare current point with last iterator's point. Definition at line 356 of file iter.hh. { return ! this->operator==(e); }

template<class Exact> bool oln::abstract::iter< Exact >::operator!= (  const abstract::point< point_type > &  p  )  const [inline]

Compare with the current iterator's point. p The iterator's point to be compared to the current point. Compare the current iterator's point with p (his argument). If they are different, return true. Definition at line 227 of file iter.hh. { return p_ != p.exact(); }

template<class Exact> point_type oln::abstract::iter< Exact >::operator+ (  const abstract::dpoint< dpoint_type > &  dp  )  const [inline]

Sum a move point to the current point. p The move point. Returns: The sum. Precondition: Instance != end. Sum the current iterator's point and the move coordinates. Definition at line 241 of file iter.hh. { precondition(*this != end); return p_ + dp.exact(); }

template<class Exact> void oln::abstract::iter< Exact >::operator++ (   )  [inline]

Go to the next iterator's point. Precondition: Instance != end. Definition at line 333 of file iter.hh. { precondition(*this != end); this->exact().goto_next_(); }

template<class Exact> point_type oln::abstract::iter< Exact >::operator- (  const abstract::dpoint< dpoint_type > &  dp  )  const [inline]

Minor a move to the current point. p The move. Returns: The minoration. Precondition: Instance != end. Minor the current point and the move coordinates. Definition at line 256 of file iter.hh. { precondition(*this != end); return p_ - dp.exact(); }

template<class Exact> mlc::end_type oln::abstract::iter< Exact >::operator= (  mlc::end_type  e  )  [inline]

Set current point to the last iterator's point. Set current point of iterator to the last iterator's point. Definition at line 310 of file iter.hh. { this->exact().goto_end_(); return e; }

template<class Exact> mlc::begin_type oln::abstract::iter< Exact >::operator= (  mlc::begin_type  b  )  [inline]

Set current point to the first iterator's point. Set current point of iterator to the first iterator's point. Definition at line 298 of file iter.hh. { this->exact().goto_begin_(); return b; }

template<class Exact> bool oln::abstract::iter< Exact >::operator== (  mlc::end_type   )  const [inline]

Compare current point and last point. Returns: True if they are the same. Compare current point with last iterator's point. Definition at line 323 of file iter.hh. { return this->exact().is_at_end_(); }

template<class Exact> bool oln::abstract::iter< Exact >::operator== (  const abstract::point< point_type > &  p  )  const [inline]

Compare with the current iterator's point. p The iterator's point to be compared to the current point. Compare the current iterator's point with p (his argument). If successful, return true. Definition at line 214 of file iter.hh. Referenced by oln::abstract::iter< mlc::exact_vt< bkd_iter2d< Exact >, Exact >::ret >::operator!=(). { return p_ == p.exact(); }

template<class Exact> const point_type& oln::abstract::iter< Exact >::point_ref (   )  const [inline]

Accessor to current iterator's point. Just return the current point of the iterator which is traversing an image. Definition at line 201 of file iter.hh. { return p_; }

---

The documentation for this struct was generated from the following file:

• iter.hh

---
