oln::fwd_iter1d< Exact > Class Template Reference

Forward Iterator on image 1 dimension. More...

#include <fwd_iter1d.hh>

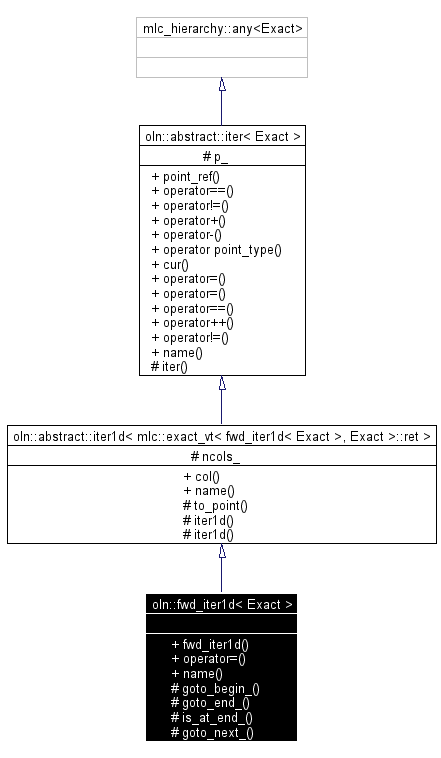

Inheritance diagram for oln::fwd_iter1d< Exact >:

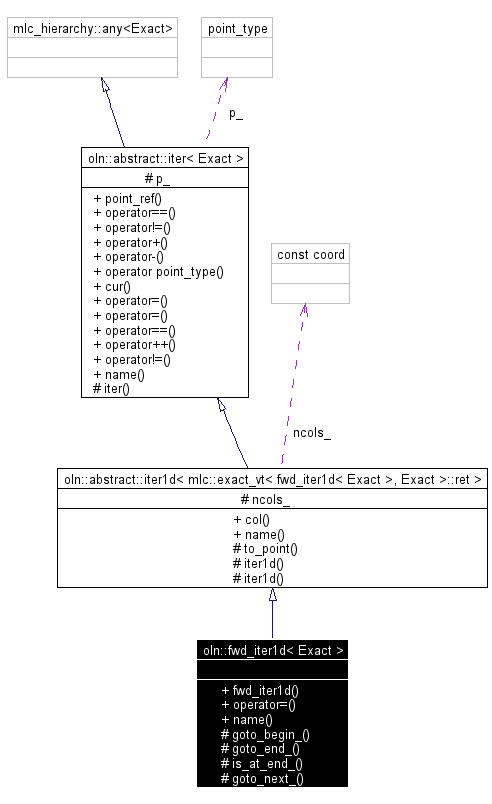

[legend]Collaboration diagram for oln::fwd_iter1d< Exact >:

[legend]List of all members.

Public Types
typedef mlc::exact_vt< fwd_iter1d< Exact >, Exact >::ret	exact_type
	The exact type.
typedef abstract::iter1d< exact_type >	super_type
	The super type.
typedef abstract::iter< exact_type >	super_iter_type
	The super iterator type.
typedef iter_traits< exact_type >::point_type	point_type
	The associate image's type of point.
enum	{ dim = iter_traits<exact_type>::dim }
Public Member Functions
template<class Image>	fwd_iter1d (const Image &ima)
	Construct a forward iterator (1 dimension). ima The image to iterate.
template<class U> U	operator= (U u)
	Set current iterator's point.
Static Public Member Functions
std::string	name ()
	Return the name of the type.
Protected Member Functions
void	goto_begin_ ()
	Set current point to the first iterator's point.
void	goto_end_ ()
	Set current point to the last iterator's point.
bool	is_at_end_ () const
	Test if iterator's current point is the last one.
void	goto_next_ ()
	Go to the next iterator's point.
Friends
class	abstract::iter< exact_type >
class	abstract::iter1d< exact_type >

---

Detailed Description

template<class Exact>
class oln::fwd_iter1d< Exact >

Forward Iterator on image 1 dimension.

Allow iterable object (like image, window, ...) of 1 dimension forward traversing.

See also:

iter

Definition at line 55 of file fwd_iter1d.hh.

---

Member Typedef Documentation

template<class Exact> typedef iter_traits<exact_type>::point_type oln::fwd_iter1d< Exact >::point_type

The associate image's type of point. Warning: Prefer the macros oln_point_type(Pointable) and oln_point_type_(Pointable) (the same without the 'typename' keyword) Reimplemented from oln::abstract::iter< Exact >. Definition at line 74 of file fwd_iter1d.hh.

---

Member Function Documentation

template<class Exact> void oln::fwd_iter1d< Exact >::goto_begin_ (   )  [inline, protected]

Set current point to the first iterator's point. Set current point of iterator to the first iterator's point. Definition at line 115 of file fwd_iter1d.hh. { this->p_.col() = 0; }

template<class Exact> void oln::fwd_iter1d< Exact >::goto_end_ (   )  [inline, protected]

Set current point to the last iterator's point. Set current point of iterator to the last iterator's point. Definition at line 126 of file fwd_iter1d.hh. { this->p_.col() = this->ncols_; }

template<class Exact> bool oln::fwd_iter1d< Exact >::is_at_end_ (   )  const [inline, protected]

Test if iterator's current point is the last one. Returns: True if current point is the last one. Definition at line 136 of file fwd_iter1d.hh. { return this->p_.col() == this->ncols_; }

template<class Exact> template<class U> U oln::fwd_iter1d< Exact >::operator= (  U  u  )  [inline]

Set current iterator's point. Set current point of iterator to the first iterator's point. Definition at line 95 of file fwd_iter1d.hh. { return super_iter_type::operator=(u); }

---

The documentation for this class was generated from the following file:

• fwd_iter1d.hh

---
