oln::abstract::iter3d< Exact > Class Template Reference

#include <iter3d.hh>

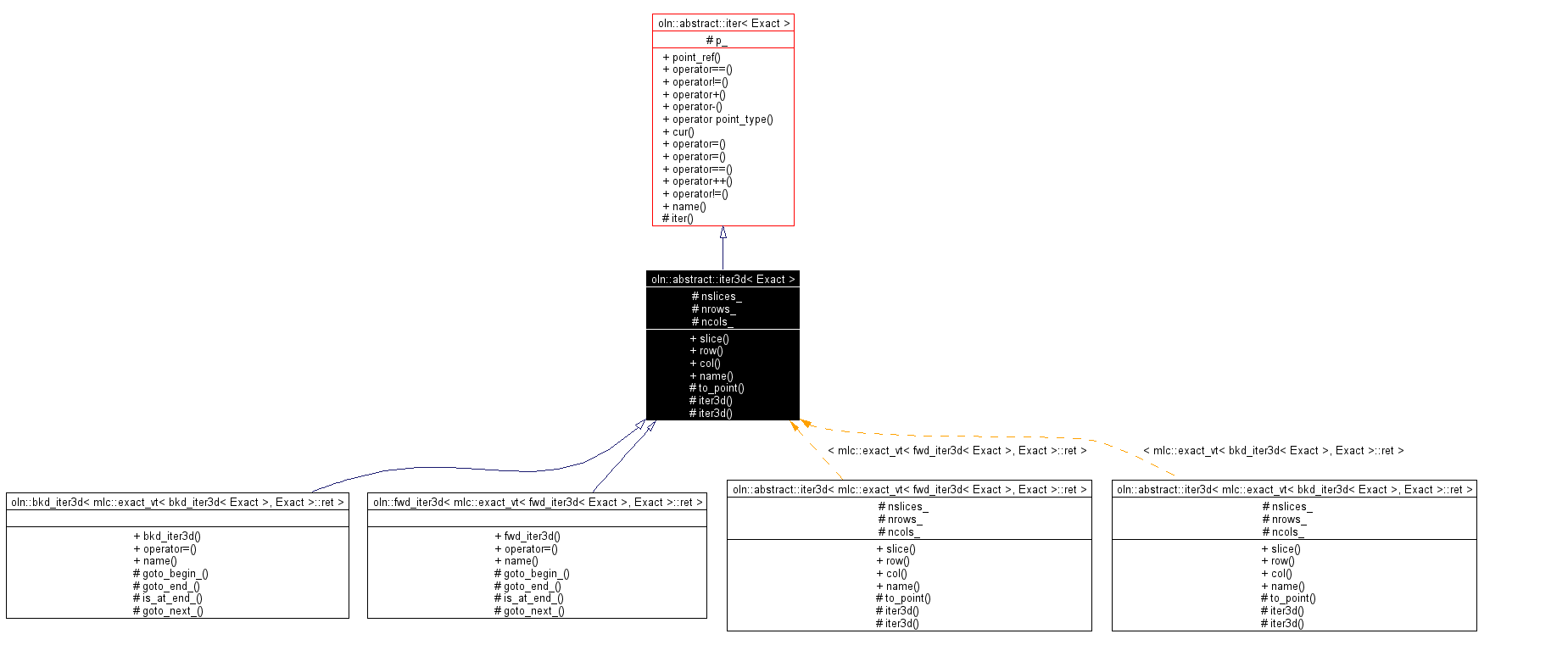

Inheritance diagram for oln::abstract::iter3d< Exact >:

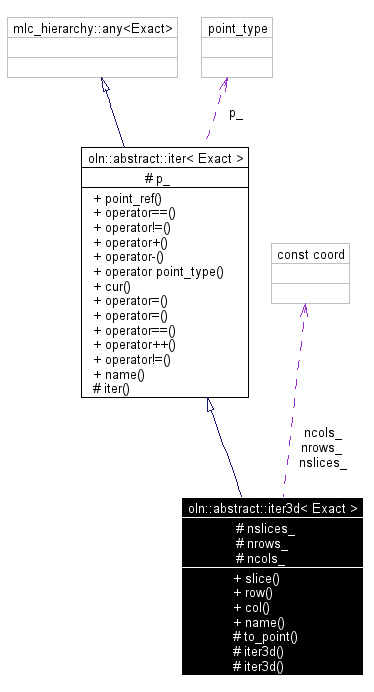

[legend]Collaboration diagram for oln::abstract::iter3d< Exact >:

[legend]List of all members.

Public Types
typedef iter< Exact >	super_type
	The exact type of the object.
Public Member Functions
coord	slice () const
	Get the coordinates (slice) of iterator's current point.
coord	row () const
	Get the coordinates (row) of iterator's current point.
coord	col () const
	Get the coordinates (col) of iterator's current point.
Static Public Member Functions
std::string	name ()
	Return the name of the type.
Protected Member Functions
point3d	to_point () const
	Get the current point viewed by the iterator.
	iter3d ()
	Constructor.
	iter3d (const image3d_size &size)
	Construct an iterator (3d) on an image (3d). size The size of the image to iterate.
Protected Attributes
const coord	nslices_
	The number of slices of the image you are iterating.
const coord	nrows_
	The number of rows of the image you are iterating.
const coord	ncols_
	The number of columns of the image you are iterating.
Friends
class	iter< Exact >

---

Detailed Description

template<class Exact>
class oln::abstract::iter3d< Exact >

Iterator on image of 3 dimensions.

Allow iterable object (like image, window, ...) of 3 dimensions traversing.

See also:

iter

Definition at line 70 of file iter3d.hh.

---

Constructor & Destructor Documentation

template<class Exact> oln::abstract::iter3d< Exact >::iter3d (  const image3d_size &  size  )  [inline, protected]

Construct an iterator (3d) on an image (3d). size The size of the image to iterate. Precondition: size.ncols() > 0. size.nrows() > 0. size.nslices() > 0. Definition at line 160 of file iter3d.hh. 00160 : 00161 super_type(), 00162 nslices_(size.nslices()), 00163 nrows_(size.nrows()), 00164 ncols_(size.ncols()) 00165 { 00166 precondition(size.nslices() > 0 00167 && size.nrows() > 0 00168 && size.ncols() > 0); 00169 this->exact().goto_begin_(); 00170 } };

---

Member Function Documentation

template<class Exact> coord oln::abstract::iter3d< Exact >::col (   )  const [inline]

Get the coordinates (col) of iterator's current point. Returns: The col number. On this kind of image (i.e. 3 dimensions), you are able to get the column number, the row number and the slice number. Definition at line 112 of file iter3d.hh. { return this->p_.col(); }

template<class Exact> coord oln::abstract::iter3d< Exact >::row (   )  const [inline]

Get the coordinates (row) of iterator's current point. Returns: The row number. On this kind of image (i.e. 3 dimensions), you are able to get the column number, the row number and the slice number. Definition at line 99 of file iter3d.hh. { return this->p_.row(); }

template<class Exact> coord oln::abstract::iter3d< Exact >::slice (   )  const [inline]

Get the coordinates (slice) of iterator's current point. Returns: The slice number. On this kind of image (i.e. 3 dimensions), you are able to get the column number, the row number and the slice number. Definition at line 86 of file iter3d.hh. { return this->p_.slice(); }

template<class Exact> point3d oln::abstract::iter3d< Exact >::to_point (   )  const [inline, protected]

Get the current point viewed by the iterator. Returns: The point (3 dimensions) viewed by the iterator. Precondition: Instance != end. Definition at line 135 of file iter3d.hh. { precondition(*this != end); invariant(this->p_.slice() >=0 && this->p_.slice() < nslices_ && this->p_.row() >= 0 && this->p_.row() < nrows_ && this->p_.col() >= 0 && this->p_.col() < ncols_); return this->p_; }

---

The documentation for this class was generated from the following file:

• iter3d.hh

---
