mln::box< P > Class Template Reference
[Basic types]

Generic box class: site set containing points of a regular grid. More...

#include <box.hh>

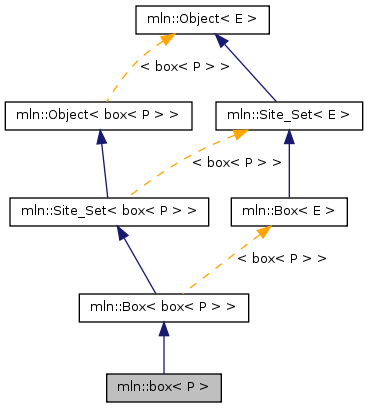

Inheritance diagram for mln::box< P >:
Inheritance graph

List of all members.

Public Types

enum


Dimension.

More...
typedef box_bkd_piter_< P > bkd_piter
 Backward Site_Iterator associated type.
typedef P element
 Element associated type.
typedef box_fwd_piter_< P > fwd_piter
 Forward Site_Iterator associated type.
typedef fwd_piter piter
 Site_Iterator associated type.
typedef P psite
 Psite associated type.
typedef P site
 Site associated type.

Public Member Functions

const box< P > & bbox () const
 Give the bounding box of this site set.
 box ()
 Constructor without argument.
 box (const site &pmin, const site &pmax)
 Constructor of a box going from pmin to pmax.
void crop_wrt (const box< P > &b)
 Crop this bbox in order to fit in the reference box b.
void enlarge (unsigned b)
 Enlarge the box with a border b.
void enlarge (unsigned dim, unsigned b)
 Enlarge the box with a border b for dimension dim.
bool has (const P &p) const
 Test if p belongs to the box.
bool is_empty () const
 Test if this box is empty.
bool is_valid () const
 Test that the box owns valid data, i.e., is initialized and with pmin being 'less-than' pmax.
unsigned len (unsigned i) const
 Give the length of the i-th side of the box.
std::size_t memory_size () const
 Return the size of this site set in memory.
void merge (const box< P > &b)
 Merge inplace with another box.
unsigned nsites () const
 Give the number of sites of this box.
pcenter () const
 Return the approximated central site of this box.
P & pmax ()
 Reference to the maximum point.
pmax () const
 Maximum point.
pmin () const
 Minimum point.
P & pmin ()
 Reference to the minimum point.
box< P > to_larger (unsigned b) const
 Give a larger box.

 box (typename P::coord ninds)

Related Functions

(Note that these are not member functions.)



template<typename P >
std::ostream & operator<< (std::ostream &ostr, const box< P > &b)
 Print a generic box b into the output stream ostr.

Detailed Description

template<typename P>
class mln::box< P >

Generic box class: site set containing points of a regular grid.

Parameter P is the corresponding type of point.

Definition at line 81 of file core/site_set/box.hh.


Member Typedef Documentation

template<typename P>
typedef box_bkd_piter_<P> mln::box< P >::bkd_piter

Backward Site_Iterator associated type.

Definition at line 105 of file core/site_set/box.hh.

template<typename P>
typedef P mln::box< P >::element

Element associated type.

Definition at line 90 of file core/site_set/box.hh.

template<typename P>
typedef box_fwd_piter_<P> mln::box< P >::fwd_piter

Forward Site_Iterator associated type.

Definition at line 99 of file core/site_set/box.hh.

template<typename P>
typedef fwd_piter mln::box< P >::piter

Site_Iterator associated type.

Definition at line 102 of file core/site_set/box.hh.

template<typename P>
typedef P mln::box< P >::psite

Psite associated type.

Definition at line 93 of file core/site_set/box.hh.

template<typename P>
typedef P mln::box< P >::site

Site associated type.

Definition at line 96 of file core/site_set/box.hh.


Member Enumeration Documentation

template<typename P>
anonymous enum

Dimension.

Definition at line 87 of file core/site_set/box.hh.


Constructor & Destructor Documentation

template<typename P >
mln::box< P >::box (  )  [inline]

Constructor without argument.

Definition at line 275 of file core/site_set/box.hh.

template<typename P >
mln::box< P >::box ( const site pmin,
const site pmax
) [inline]

Constructor of a box going from pmin to pmax.

Definition at line 284 of file core/site_set/box.hh.

References mln::box< P >::is_valid().

template<typename P >
mln::box< P >::box ( typename P::coord  ninds  )  [inline, explicit]

Constructors with different numbers of arguments (sizes) w.r.t. the dimension.

Definition at line 293 of file core/site_set/box.hh.

References mln::literal::origin.


Member Function Documentation

const box< P > & mln::Box< box< P > >::bbox (  )  const [inherited]

Give the bounding box of this site set.

Return the bounding box of this site set, so that is itself. This method is declared by the mln::Site_Set concept.

Warning:
This method is final for all box classes.
template<typename P >
void mln::box< P >::crop_wrt ( const box< P > &  b  )  [inline]

Crop this bbox in order to fit in the reference box b.

Definition at line 205 of file core/site_set/box.hh.

References mln::box< P >::pmax(), and mln::box< P >::pmin().

Referenced by mln::debug::draw_graph(), and mln::make_debug_graph_image().

template<typename P >
void mln::box< P >::enlarge ( unsigned  b  )  [inline]

Enlarge the box with a border b.

Definition at line 337 of file core/site_set/box.hh.

References mln::box< P >::is_valid().

Referenced by mln::registration::icp().

template<typename P >
void mln::box< P >::enlarge ( unsigned  dim,
unsigned  b
) [inline]

Enlarge the box with a border b for dimension dim.

Definition at line 351 of file core/site_set/box.hh.

References mln::box< P >::is_valid().

template<typename P >
bool mln::box< P >::has ( const P &  p  )  const [inline]

Test if p belongs to the box.

Parameters:
[in] p A point site.

Definition at line 325 of file core/site_set/box.hh.

References mln::box< P >::is_valid().

Referenced by mln::morpho::line_gradient().

bool mln::Box< box< P > >::is_empty (  )  const [inherited]

Test if this box is empty.

template<typename P >
bool mln::box< P >::is_valid (  )  const [inline]
unsigned mln::Box< box< P > >::len ( unsigned  i  )  const [inherited]

Give the length of the i-th side of the box.

Precondition:
i < site::dim
Warning:
This method is final for all box classes.
template<typename P >
std::size_t mln::box< P >::memory_size (  )  const [inline]

Return the size of this site set in memory.

Definition at line 407 of file core/site_set/box.hh.

template<typename P >
void mln::box< P >::merge ( const box< P > &  b  )  [inline]

Merge inplace with another box.

Definition at line 221 of file core/site_set/box.hh.

References mln::box< P >::is_valid(), mln::box< P >::pmax(), and mln::box< P >::pmin().

unsigned mln::Box< box< P > >::nsites (  )  const [inherited]

Give the number of sites of this box.

Return the number of sites of this box. This method is declared by the mln::Site_Set concept.

Warning:
This method is final for all box classes.
template<typename P >
P mln::box< P >::pcenter (  )  const [inline]

Return the approximated central site of this box.

Definition at line 395 of file core/site_set/box.hh.

References mln::box< P >::is_valid().

template<typename P >
P mln::box< P >::pmax (  )  const [inline]
template<typename P >
P & mln::box< P >::pmax (  )  [inline]

Reference to the maximum point.

Definition at line 268 of file core/site_set/box.hh.

template<typename P >
P & mln::box< P >::pmin (  )  [inline]

Reference to the minimum point.

Definition at line 251 of file core/site_set/box.hh.

template<typename P >
P mln::box< P >::pmin (  )  const [inline]
template<typename P >
box< P > mln::box< P >::to_larger ( unsigned  b  )  const [inline]

Give a larger box.

Definition at line 378 of file core/site_set/box.hh.

References mln::box< P >::is_valid().


Friends And Related Function Documentation

template<typename P >
std::ostream & operator<< ( std::ostream &  ostr,
const box< P > &  b
) [related]

Print a generic box b into the output stream ostr.

Parameters:
[in,out] ostr An output stream.
[in] b A generic box.
Returns:
The modified output stream ostr.

Definition at line 414 of file core/site_set/box.hh.
